Bouw Radio Zendstation Malabar

Album pages 11 - 12 - 13 - 14- 15 - 16 - 17 -18 - 19



Machine voor voeding grote boog



Album page sheet 11





Juni 1920

Machine voor voeding grote boog

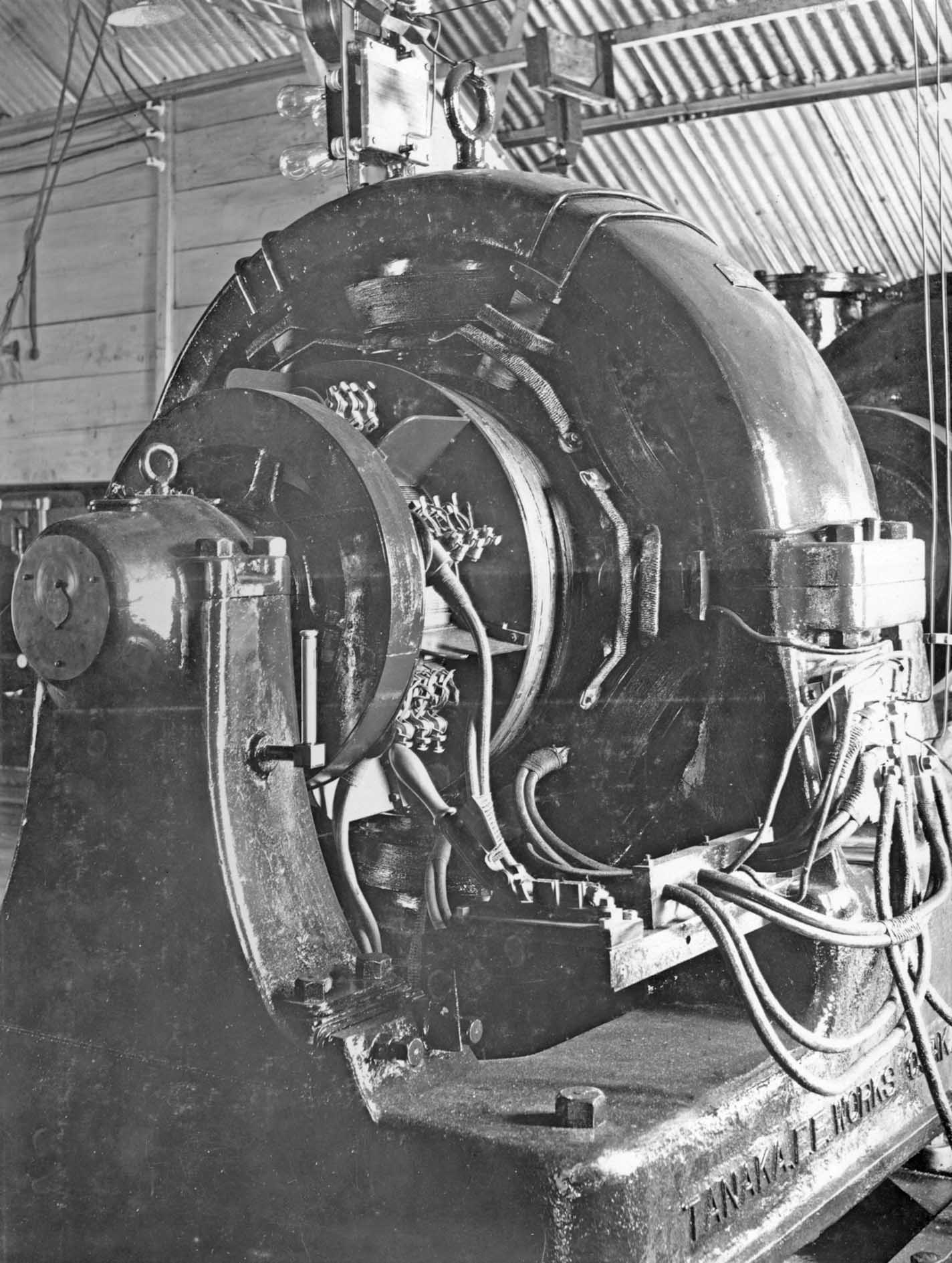

Power supply to the 'big Poulsen arc'

According its cast socket is was manufactured by TANAKA ?? Works



Juni 1920

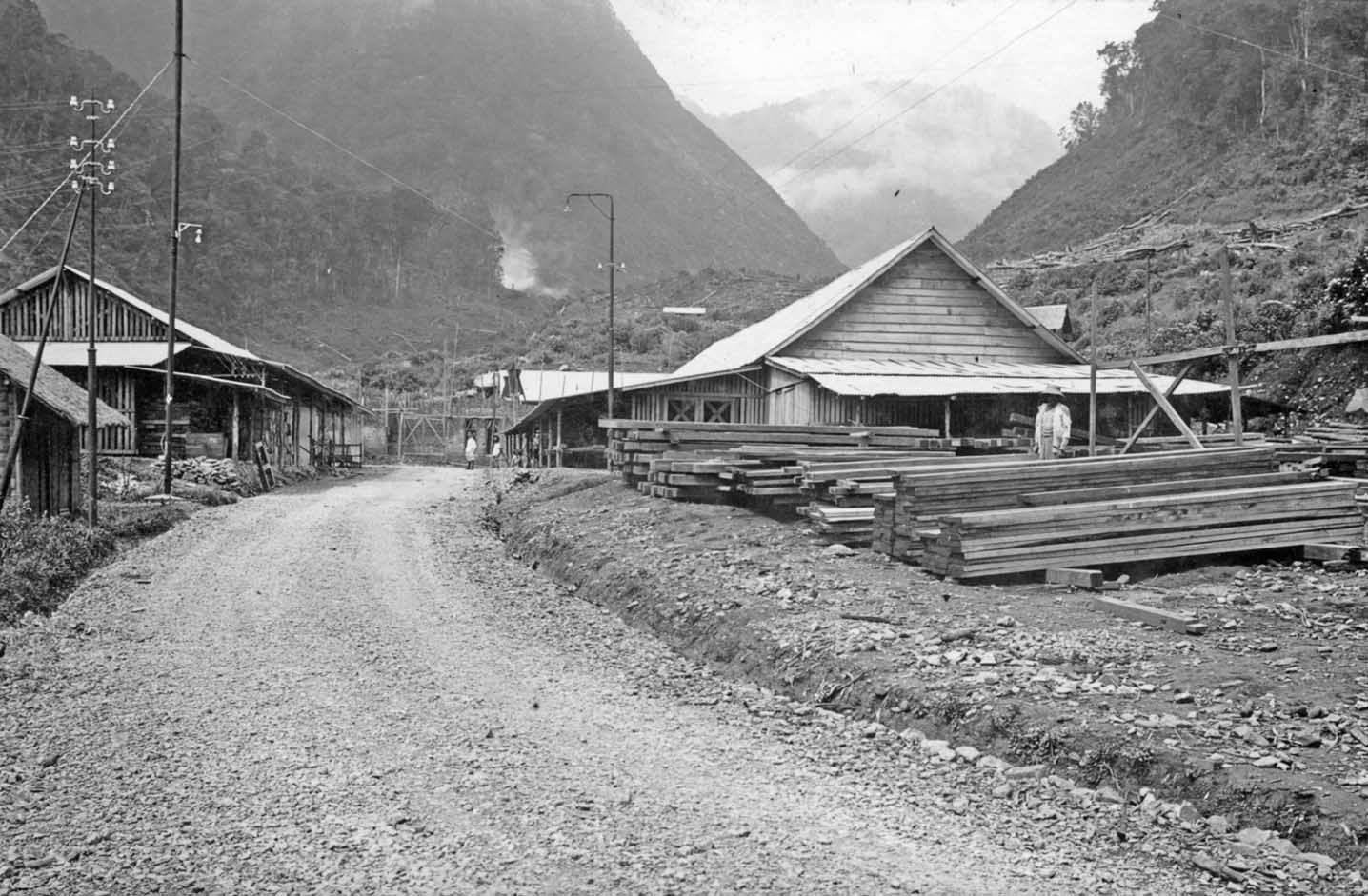

Opslagplaats

Likely the entrance road to the building site. Viewing southwards toward the canyon entrance.





Juni 1920

Funderingen

What the purpose these buildings are I don't know





Album sheet page 12

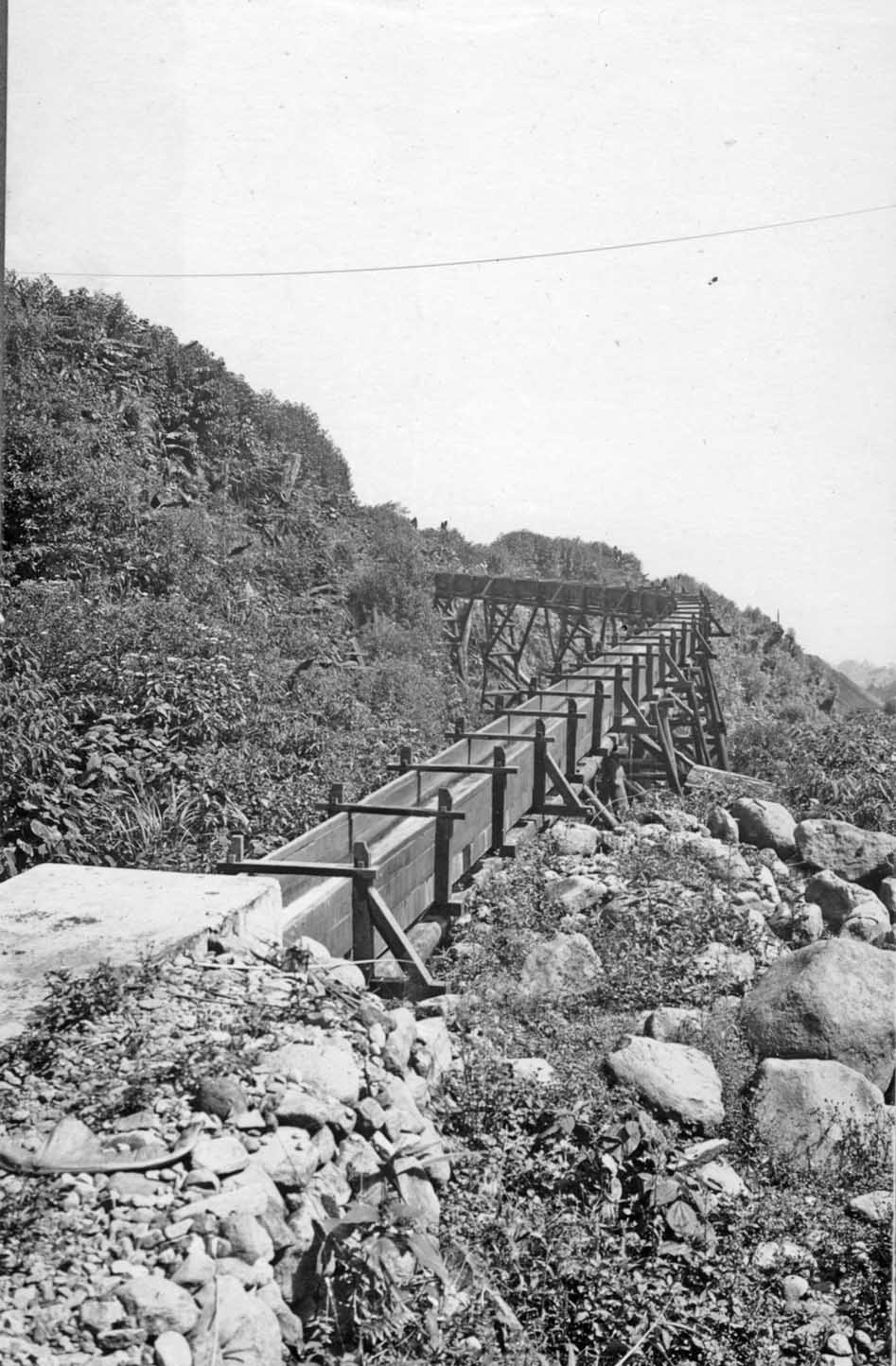

Aanvoergoot voor waterturbine







Juni 1920

Drain system guiding the water on to the turbine generator





Juni 1920

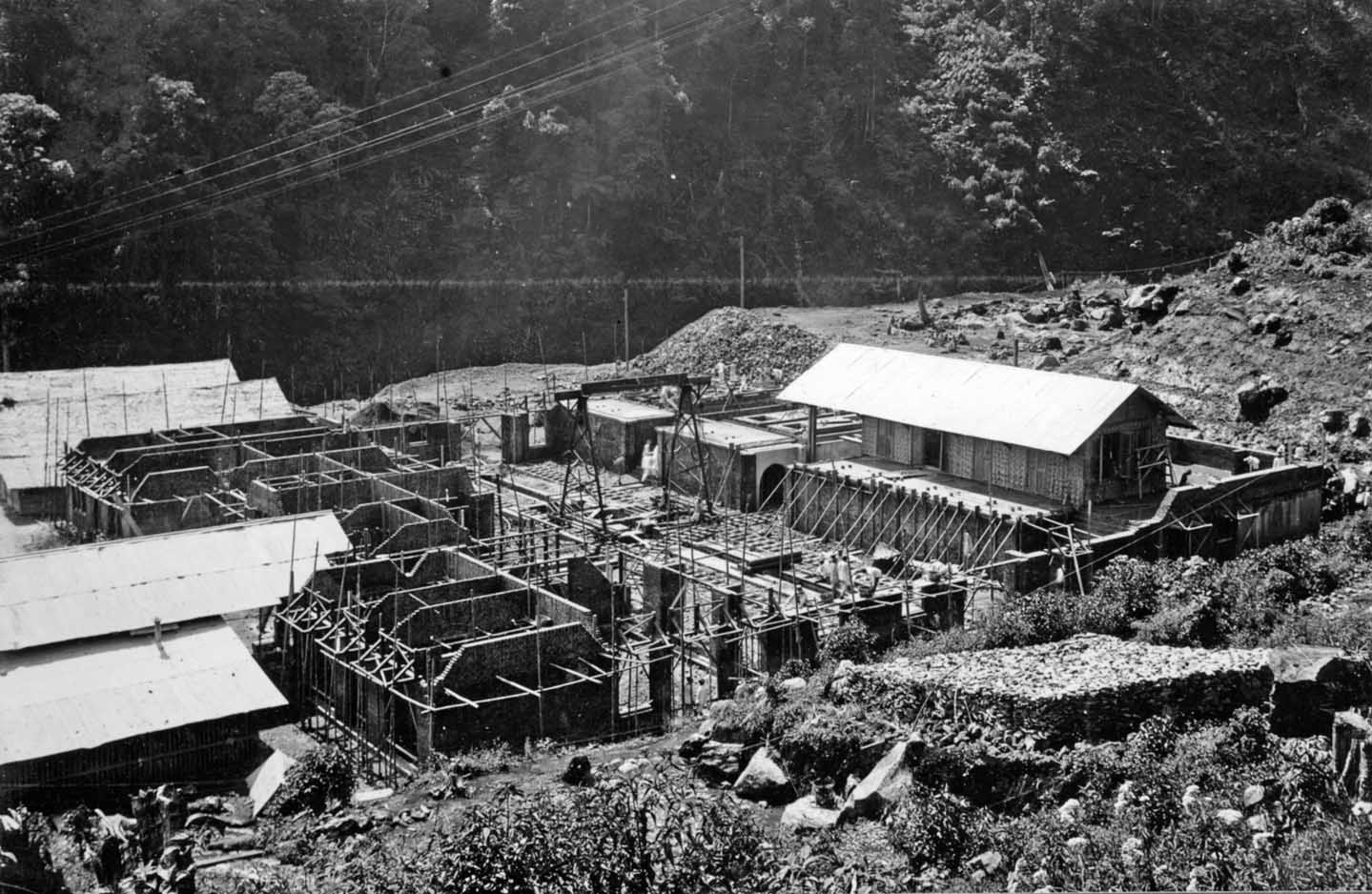

Although, there is no caption, we may estimate that it concerns the fundament of the main Malabar Station hall. And, that the photographer was standing where later the attached Telefunken station hall was to be build. We are looking northwards and the building is at our left-hand side thus is west of us





Juni 1920

Bijgebouwen (annex)

I don't know where we are looking





Album sheet page 13



Turbine

Juni 1920

Turbine

We may assume, that the turbine is the device in between the two electrical generators





Album sheet page 14 - 15





Juni 1920

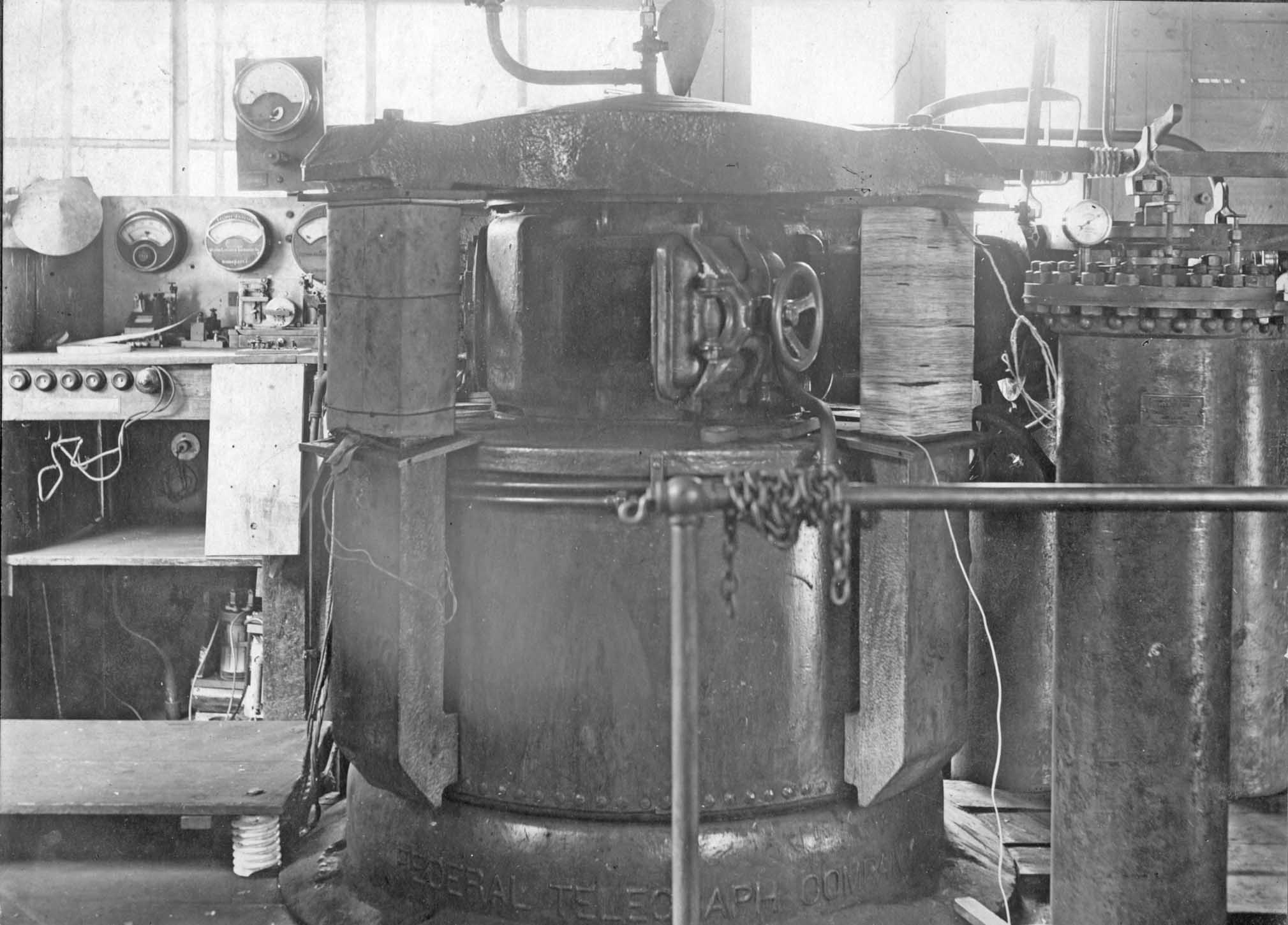

This is another Poulsen 'spark-gap' generator. I believe, still being experimented with



Album sheet page 15



Juni 1920

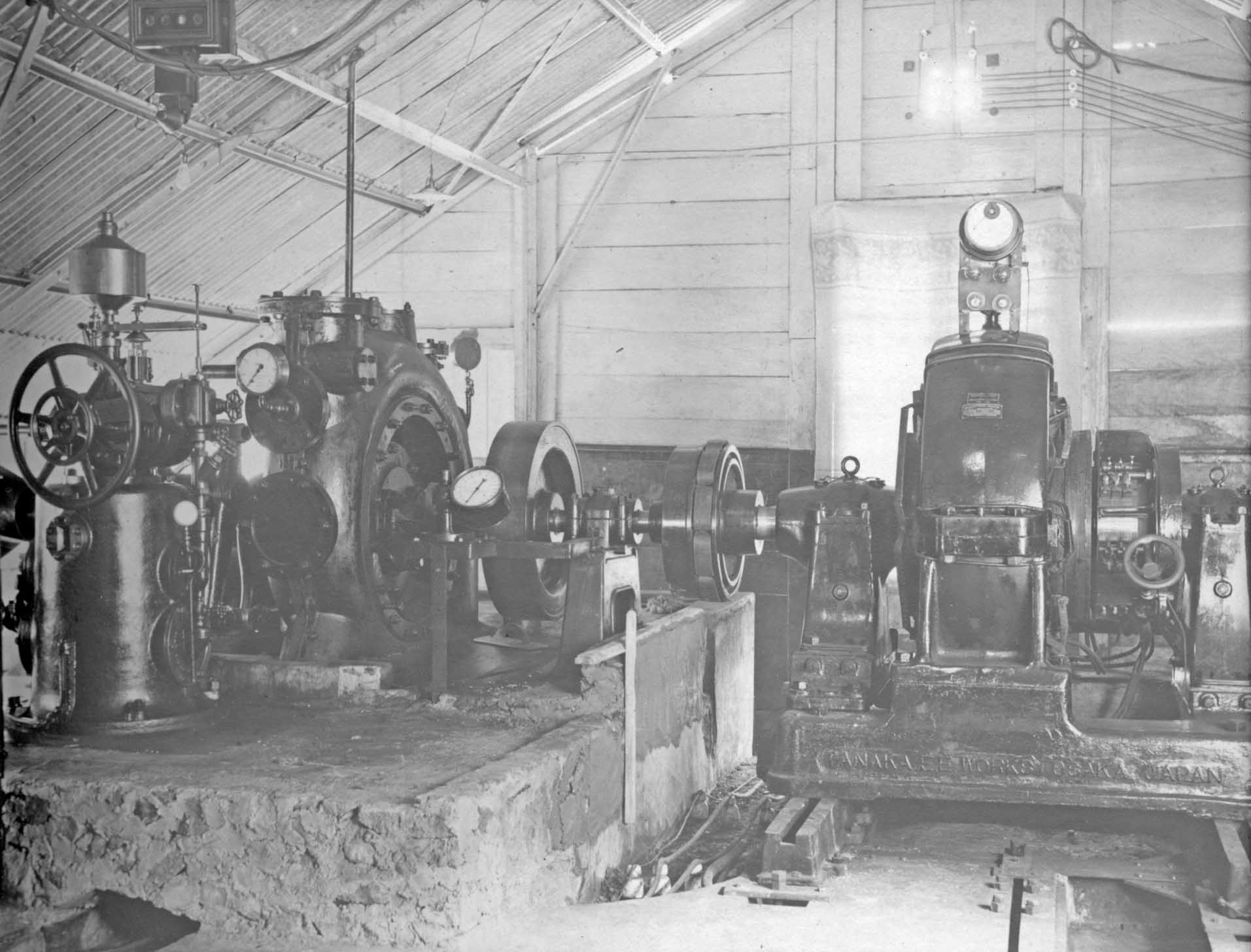

On the right-hand side a heavy electric generator, on the left a turbine. Although, not completely clear, the typical pressure meters point into pressure control According this caption, it concerns a supply tube. Thus a water feed for turbines. How this correlate to the very open drains (small canals) I don't know. In the beginning of this album we have already notice this drain pipe





Album sheet page 16

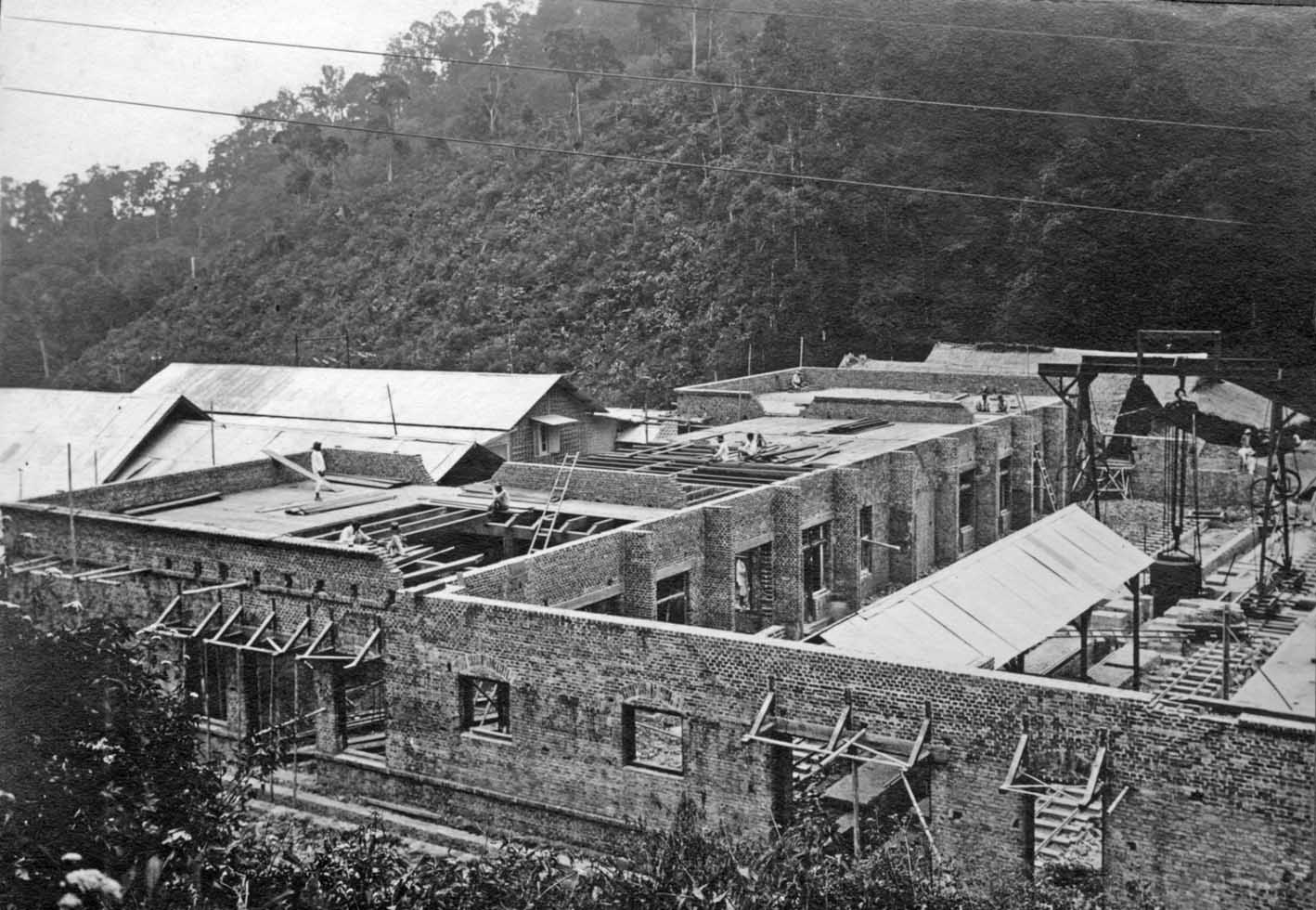

Begin bouw grote hal

Start construction of the big station hall





Juni 1920



Juni 1920



Juni 1920

Viewing probably at the basement

Looking southwards into the canyon entrance





Page 17 - 18

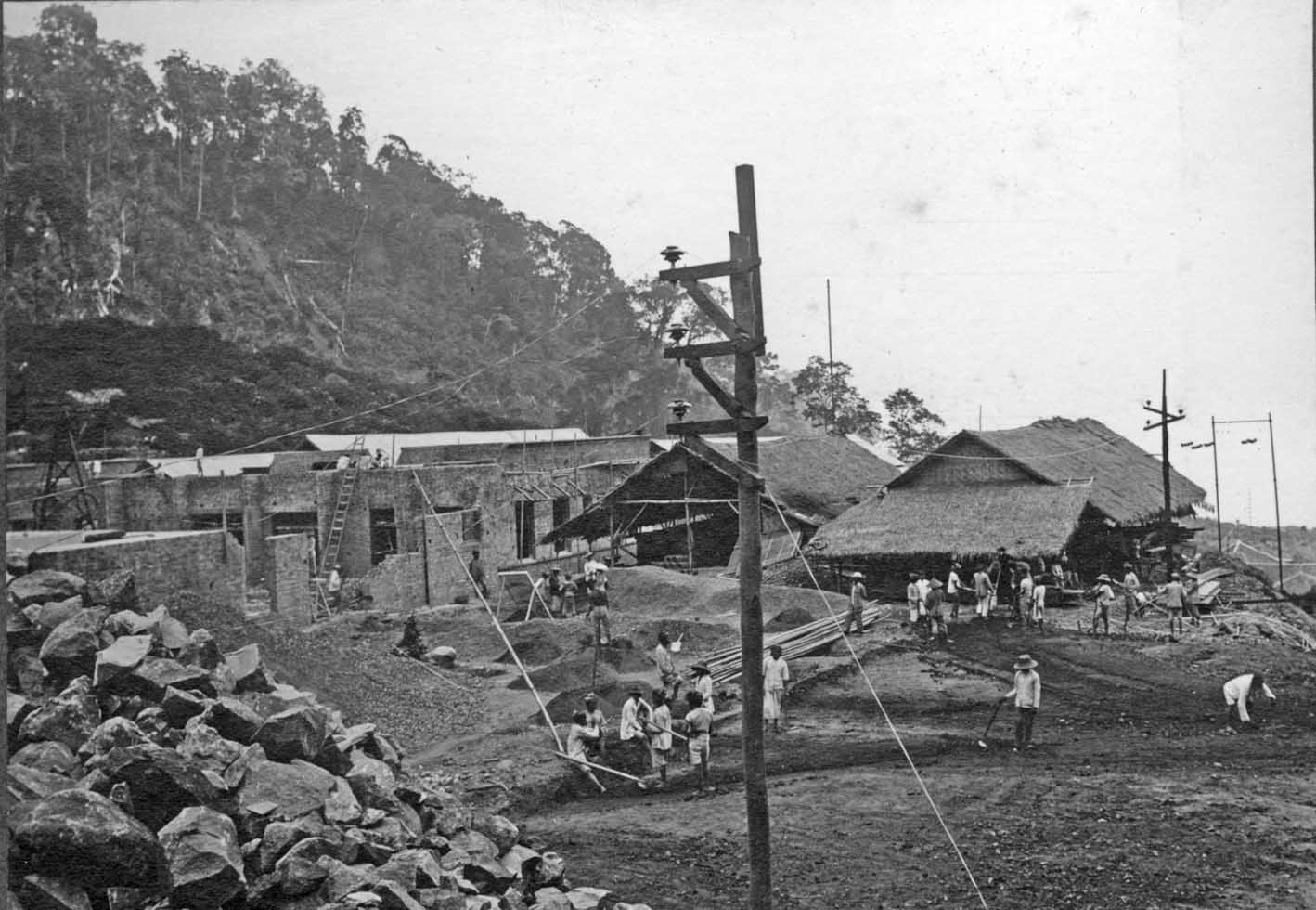

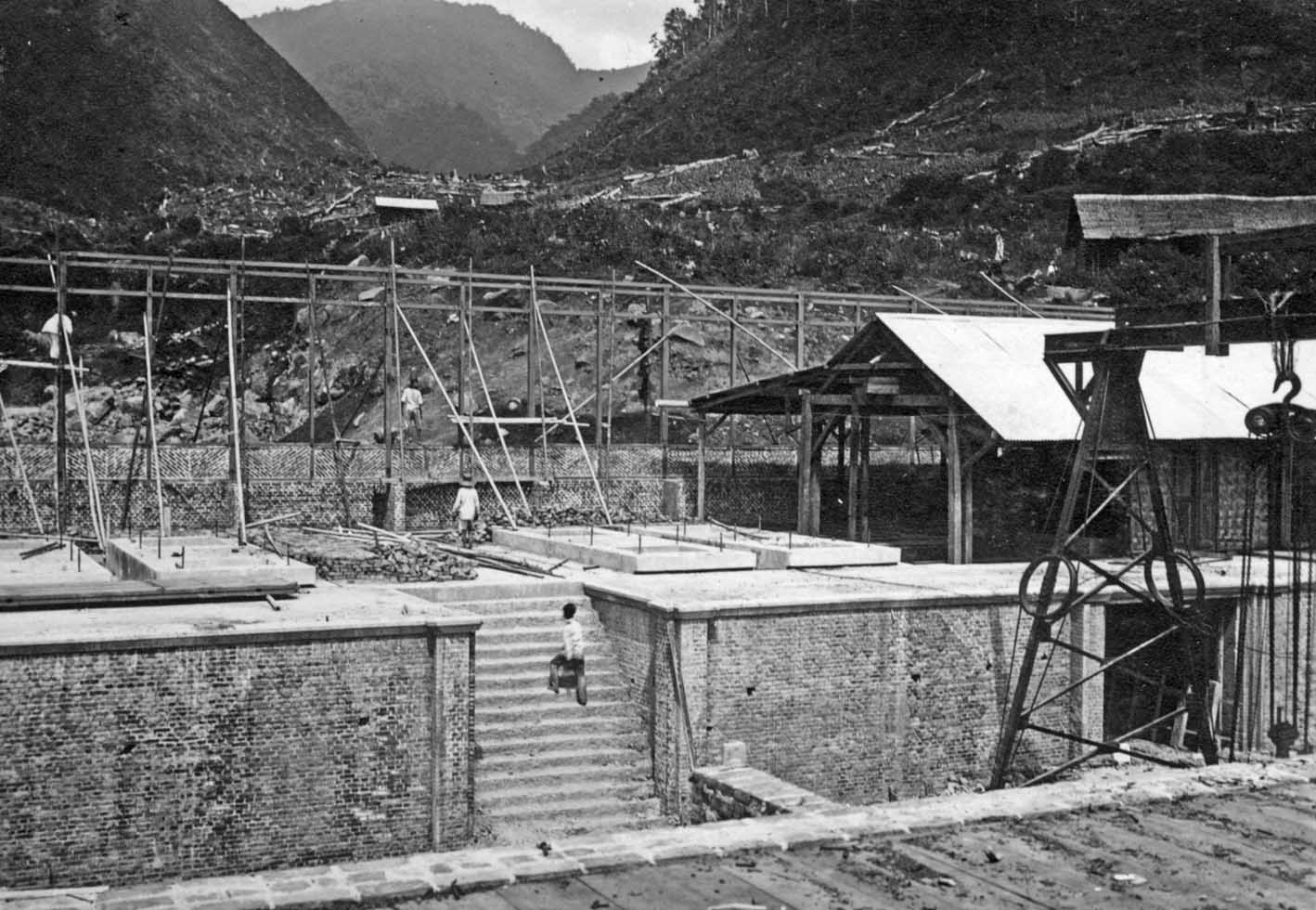

Bijgebouwen

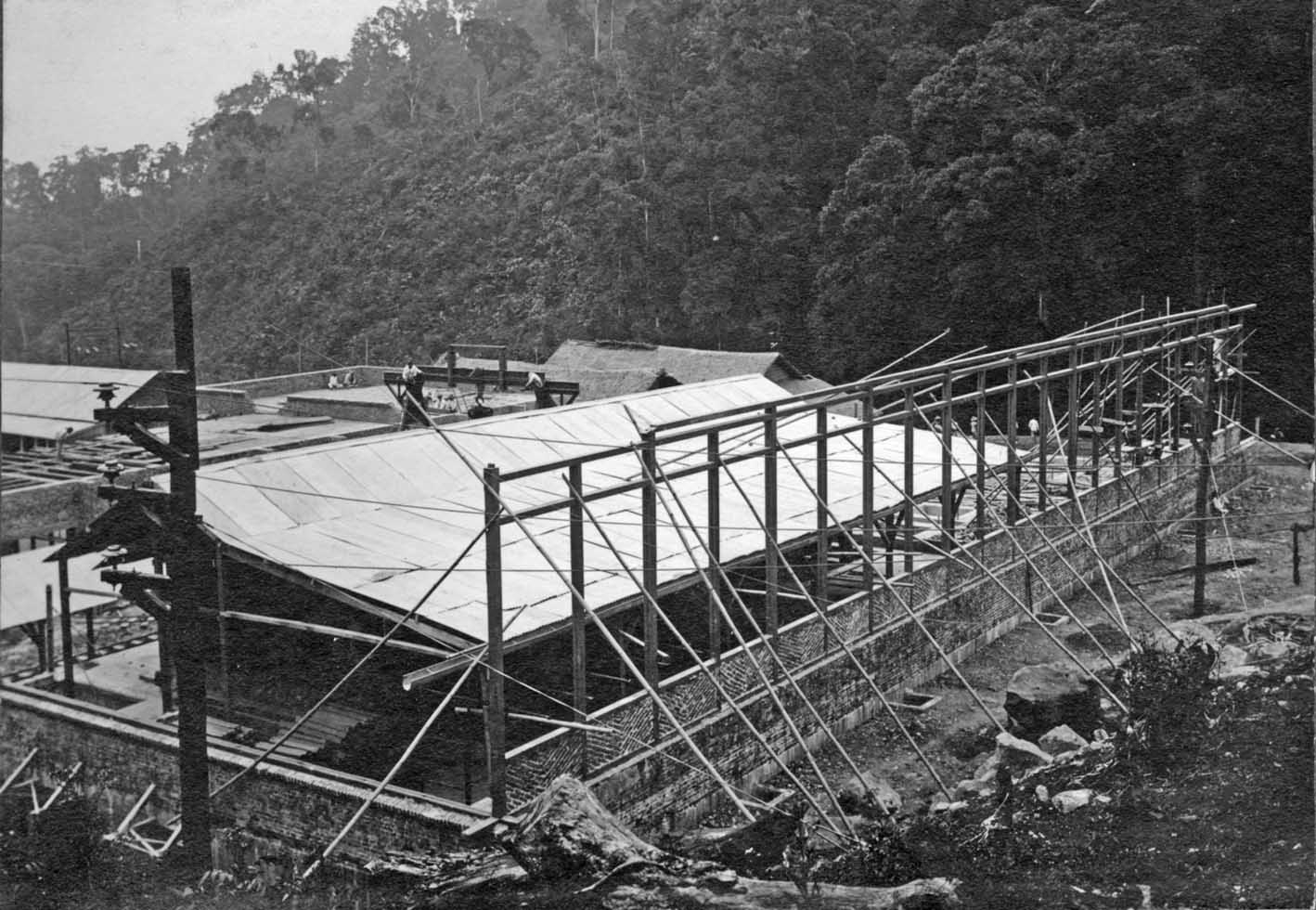

Constructing auxiliary buildings





Juni 1920







Juni 1920

 Viewing likely northwards



(1)

Juni 1920

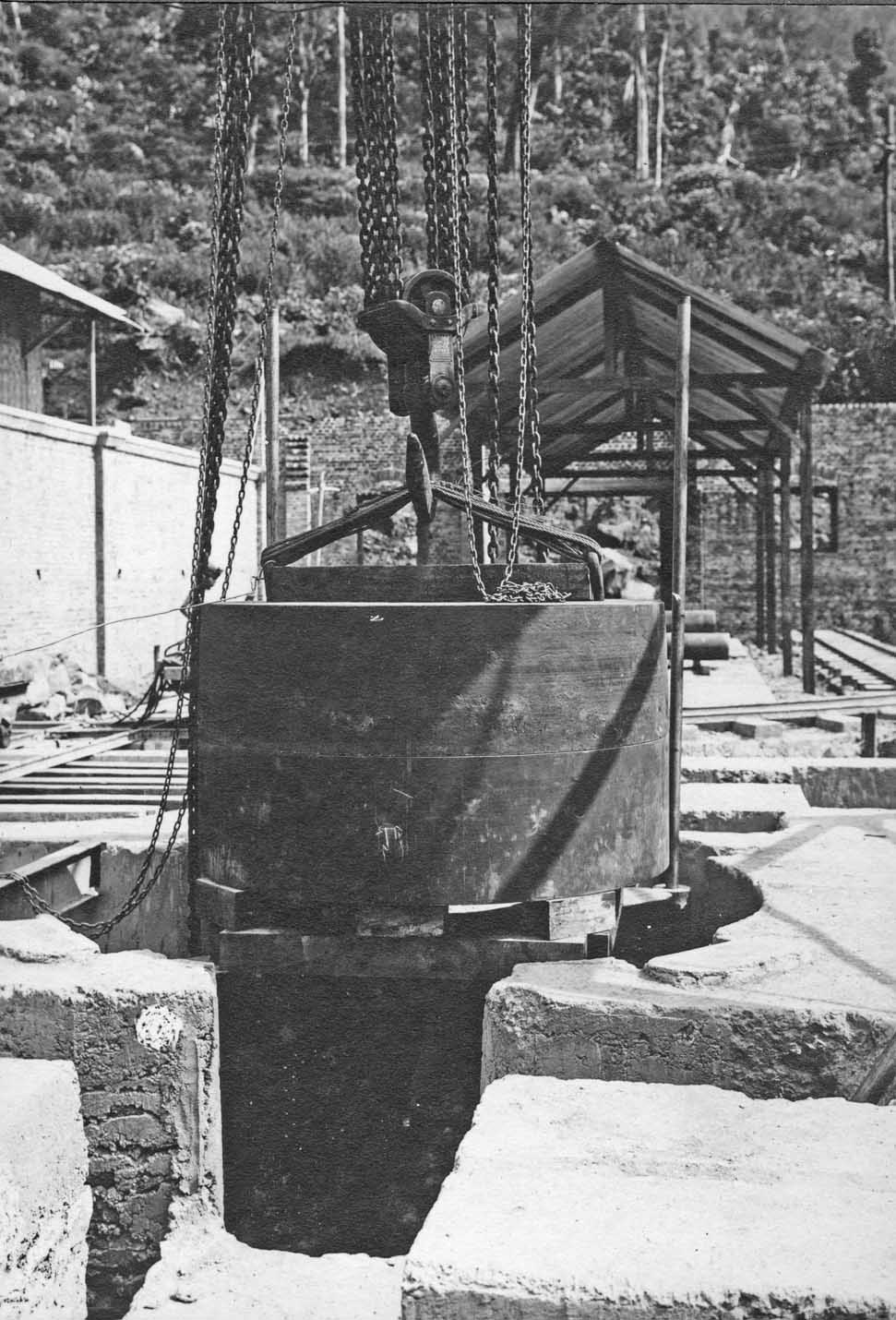

Considering the the heavy metal cylinder might have been meant fundament for one of the various Poulsen spark-gap transmitters





page 18





Juni 1920

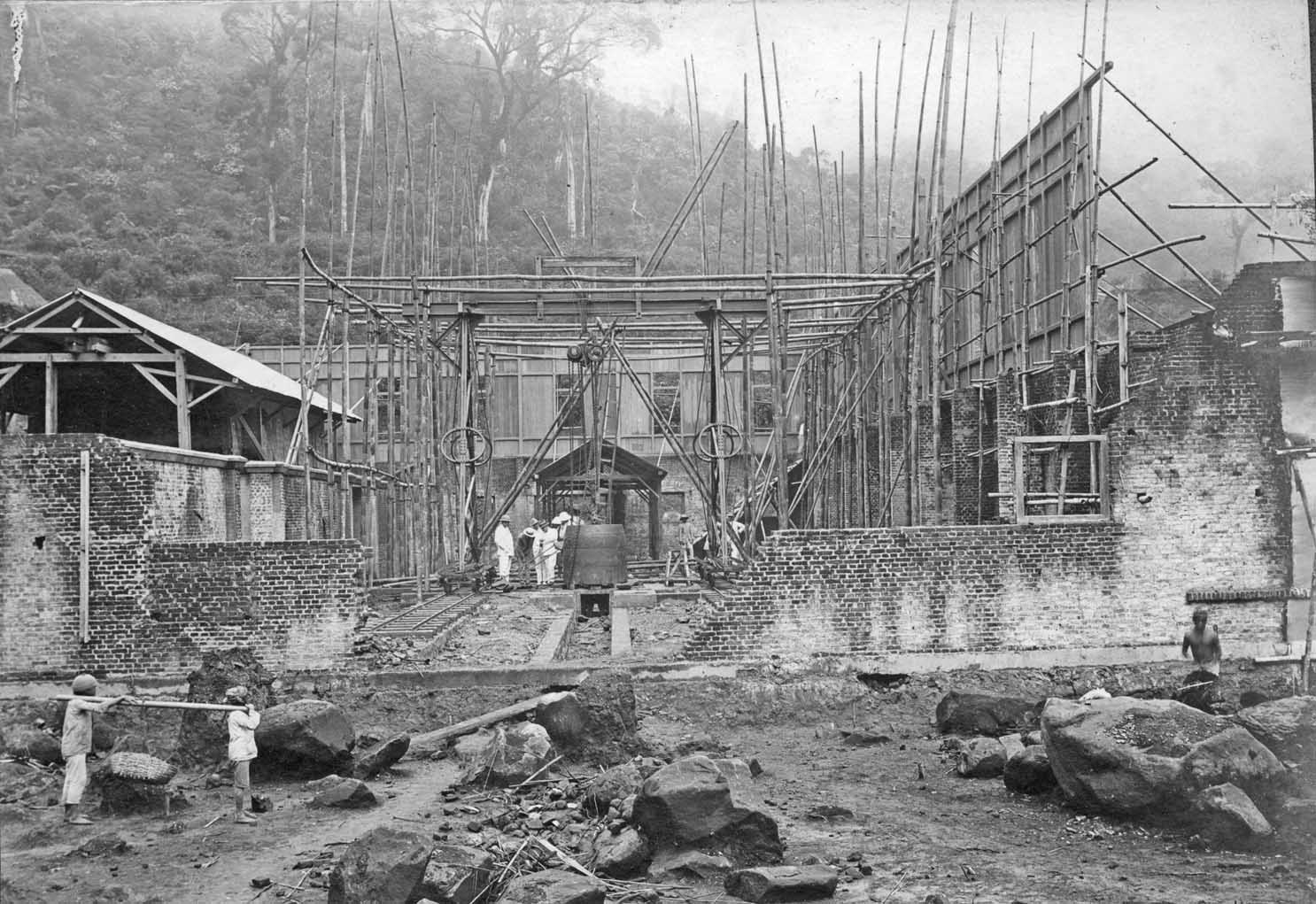

My guess, we are looking underneath the main station building. Whether of the main hall or somewhere else is not clear





Page 19



Tweede verdieping Hoofdgebouw

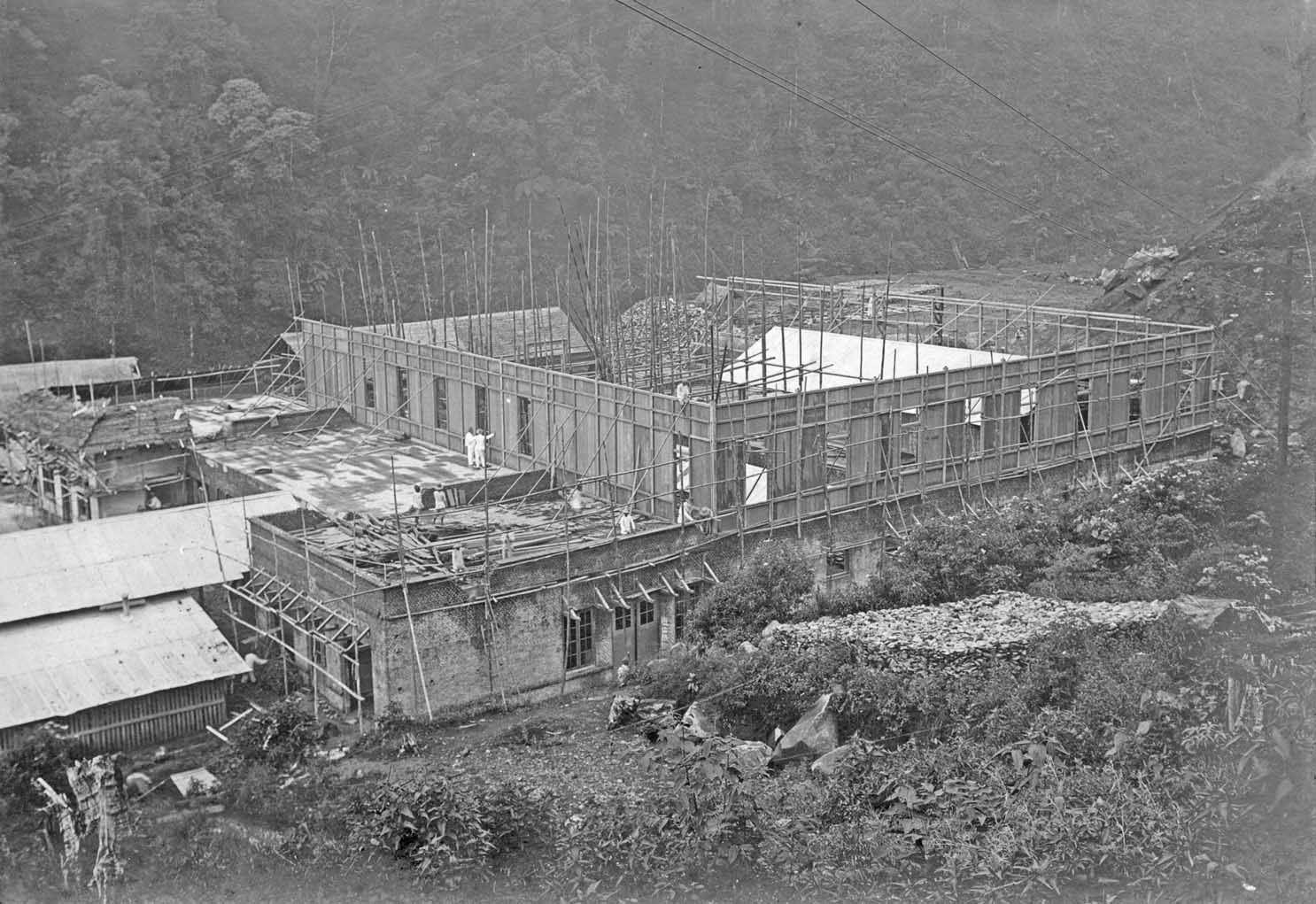

The second floor of the main station building



September 1920





September 1920



September 1920



September 1920

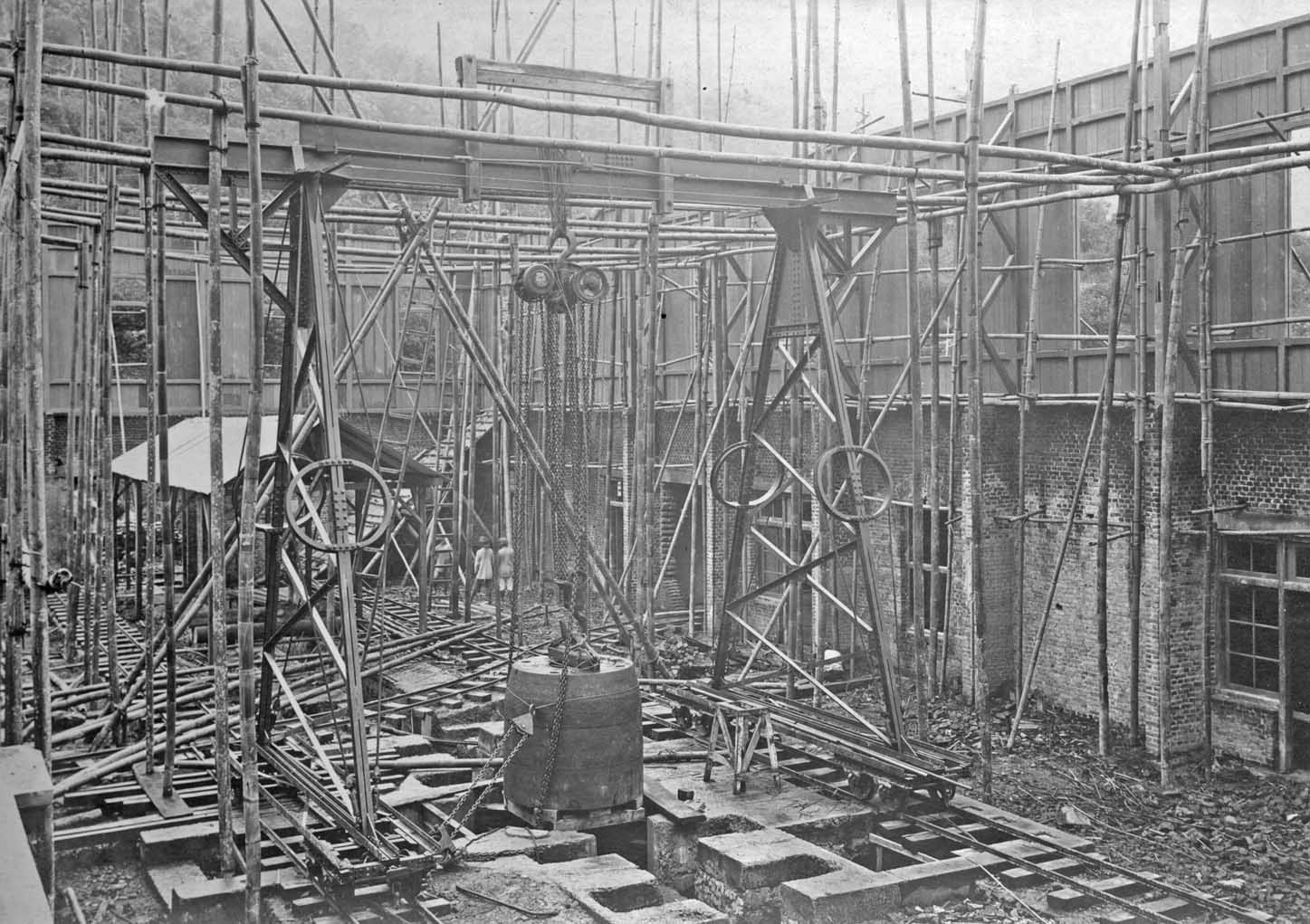

Viewing this metal unit and comparing its surrounding viewed some photographs ago we may consider that both are at the same spot; but this image is taken some time later as the side walls being erected in the meantime. This correlate with the two dates. The first photo was from June 1920 and this one from September 1920
