Bouw Radio Zendstation Malabar

Album pages: 51 up to 72 (being the final page of this series)



Maybe this page is a bit too much heavy loaded, patience is therefore sometimes needed.



Status: 28 June 2014



Page 51





8 September 1921

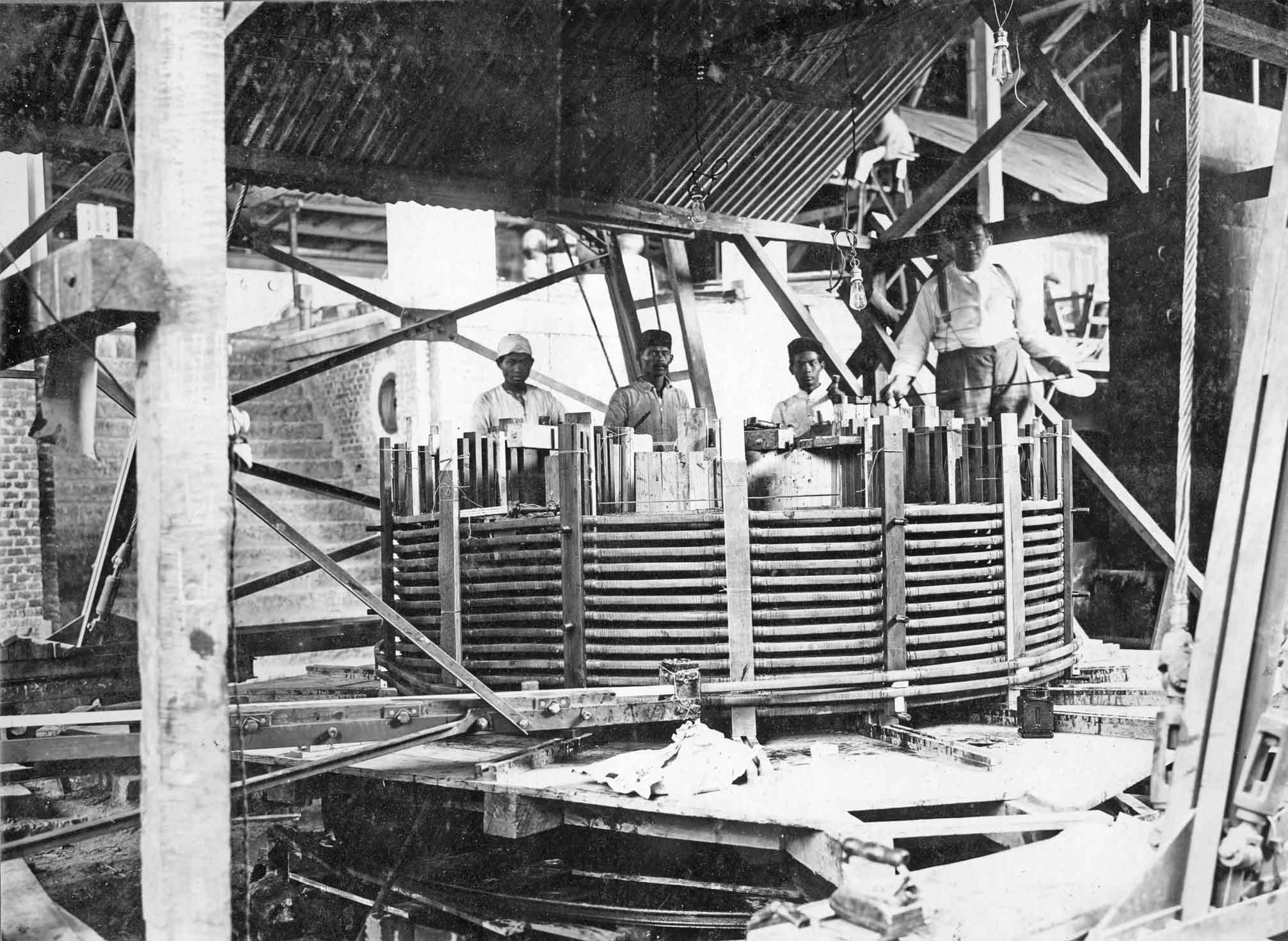

Wikkelen van een spoel

The text is a bit too simple. We are viewing the construction of the lower coil, which supplies the HF output current. The person with spectacles is called by Klaas Dijkstra 'Lazarus Potcognak'. When he wrote this down he could only rely on his memory phonetically. He came from what later became Czechoslovakia, but lived together with an Indonesian woman for some time.    Please notice the way the coils were implemented in the system



Page 52





8 September 1921

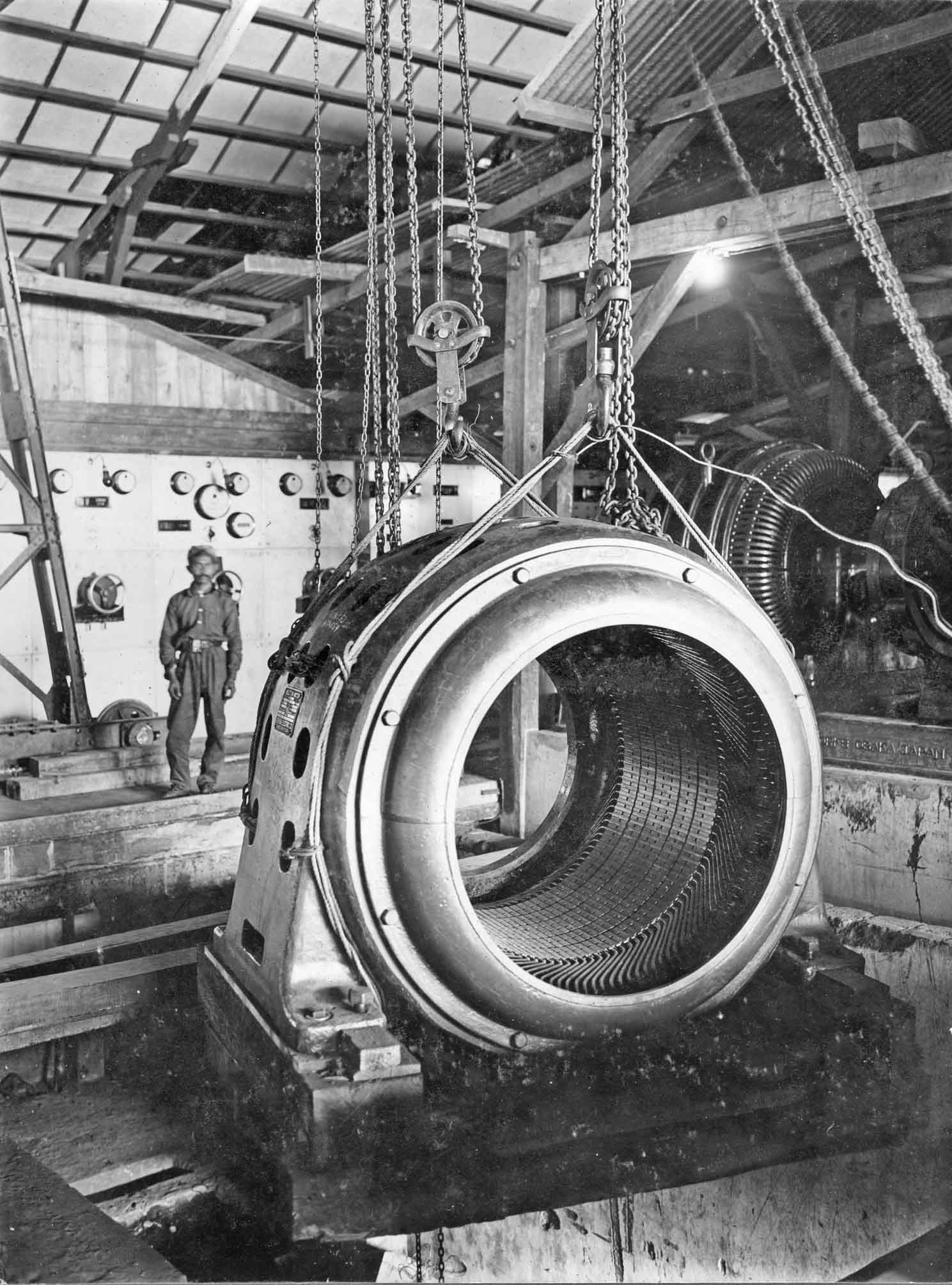

Stator van de generator





12 October 1921

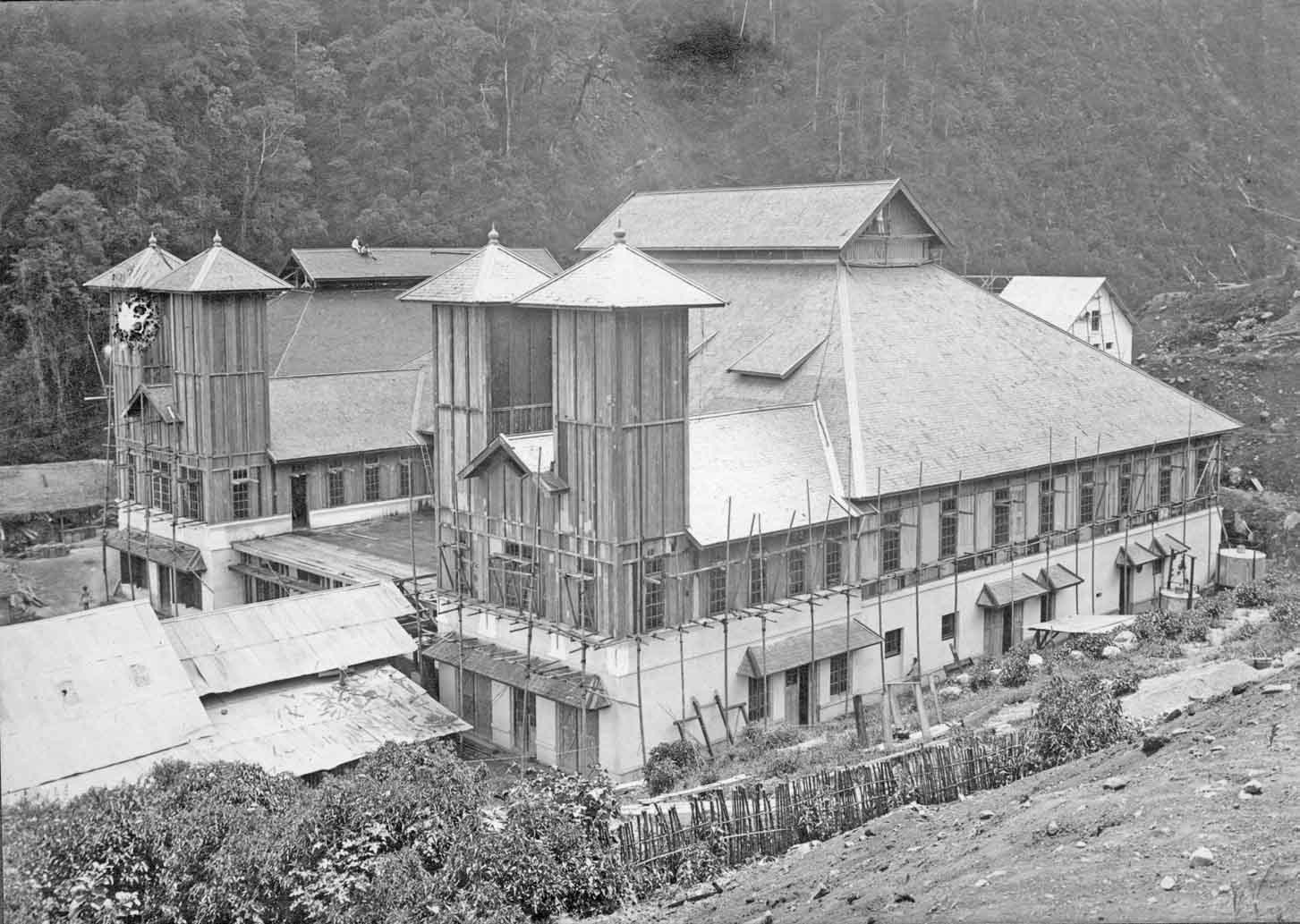

Please notice the two men on the top of the roof of the Telefunken annex.

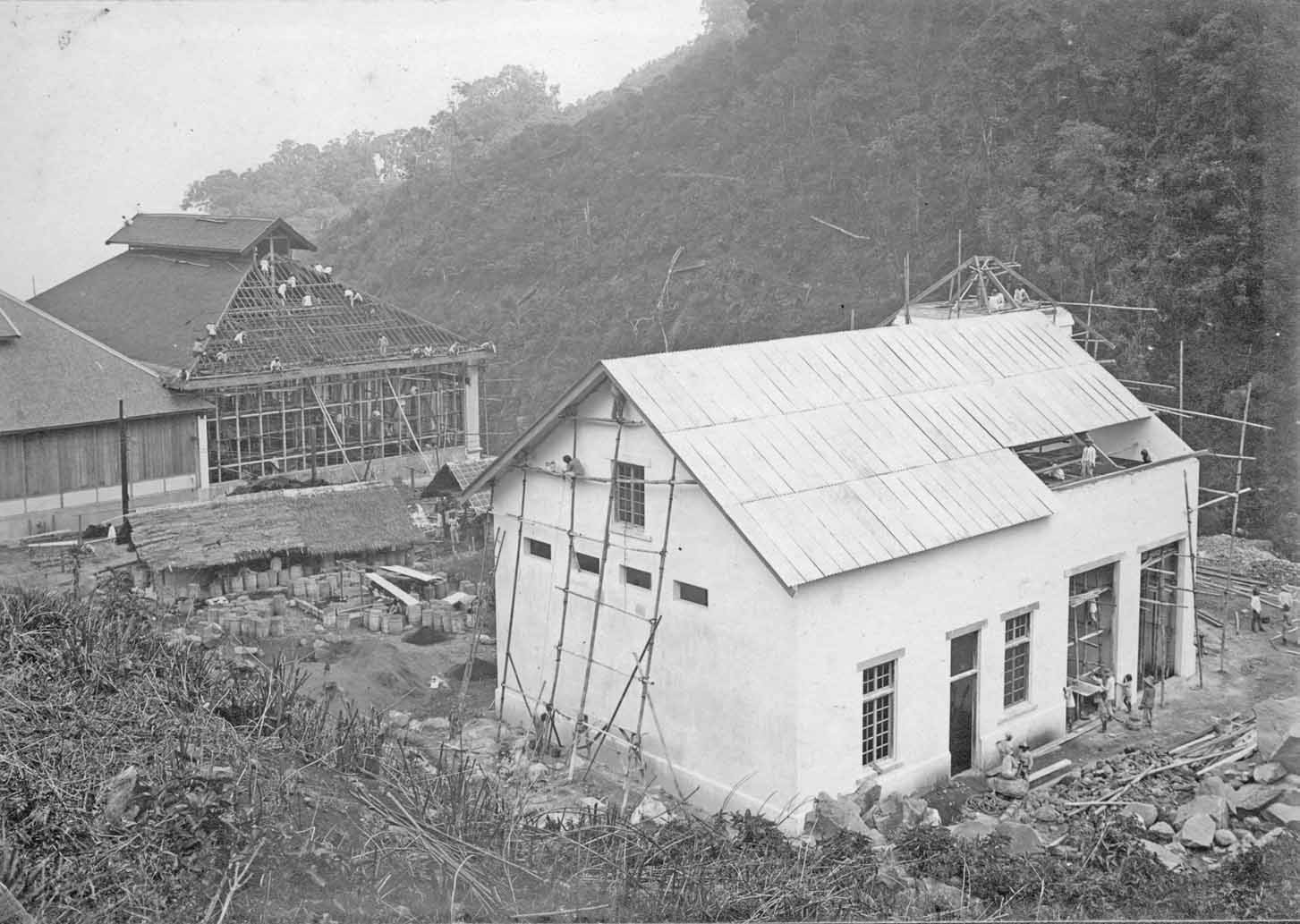

12 October 1921

Viewing towards the rear side of the main station building. The Telefunken transmitter hall still not having glass windows.



Page 53





12 October 1921

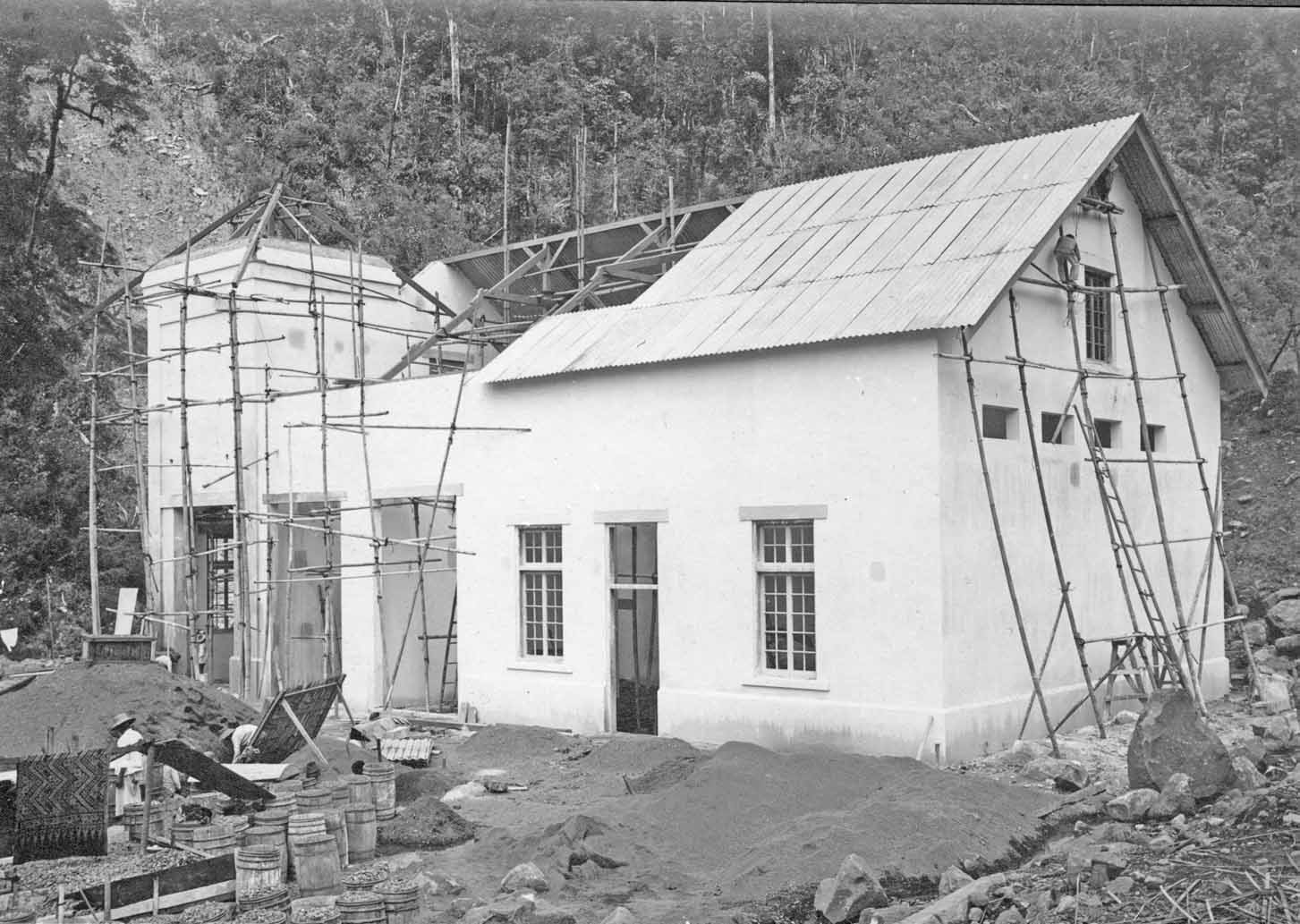

 Magazyn

A storage building situated in the 'backyard' of the Telefunken transmitter hall.





12 October 1921

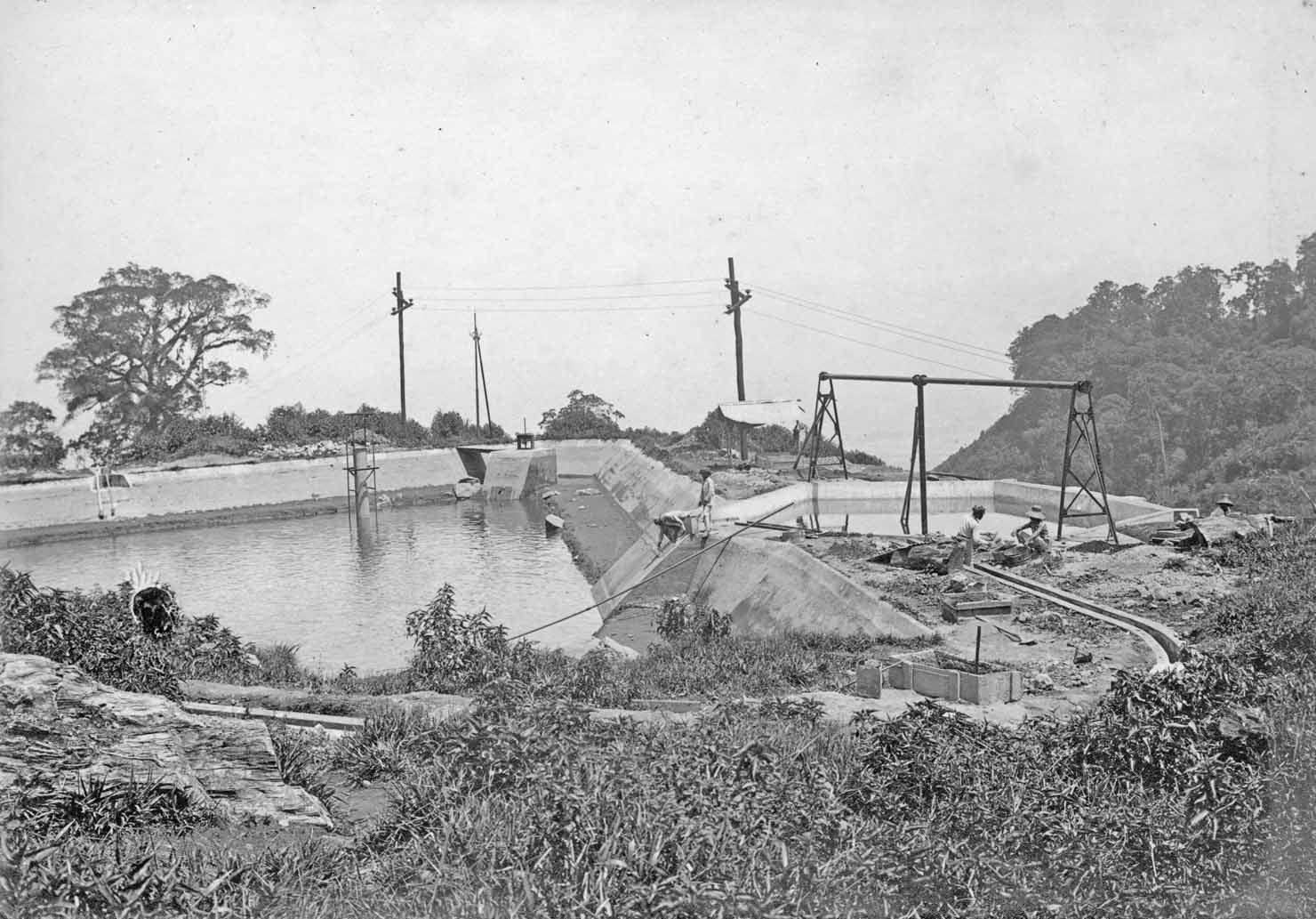

Koelvyver boven

Cooling water pond, situated at an elevated level above the main transmitter station.





12 October 1921

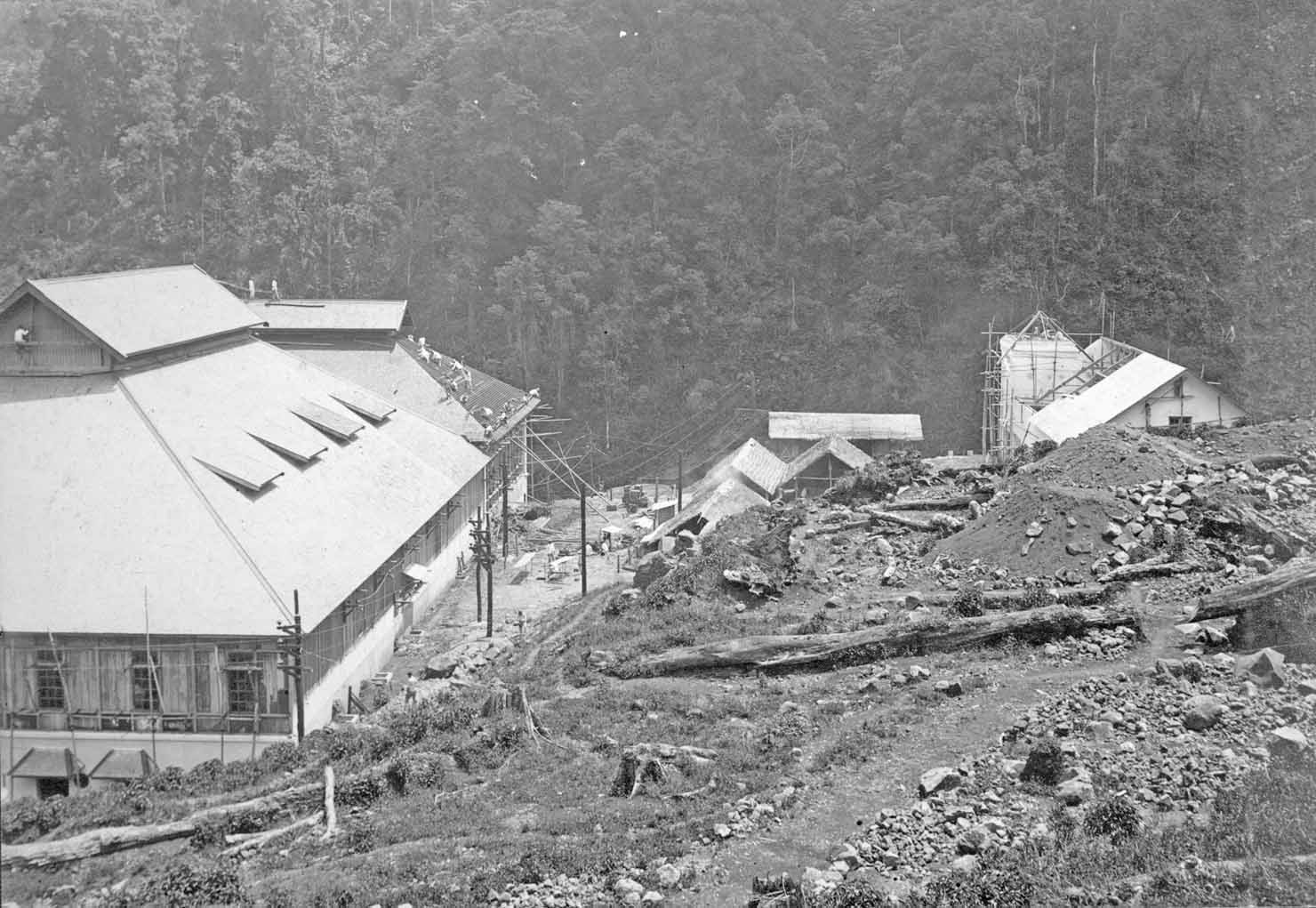

Viewing on the left the main station building and on the right-hand side a storage, likely utility building as well.





12 October 1921

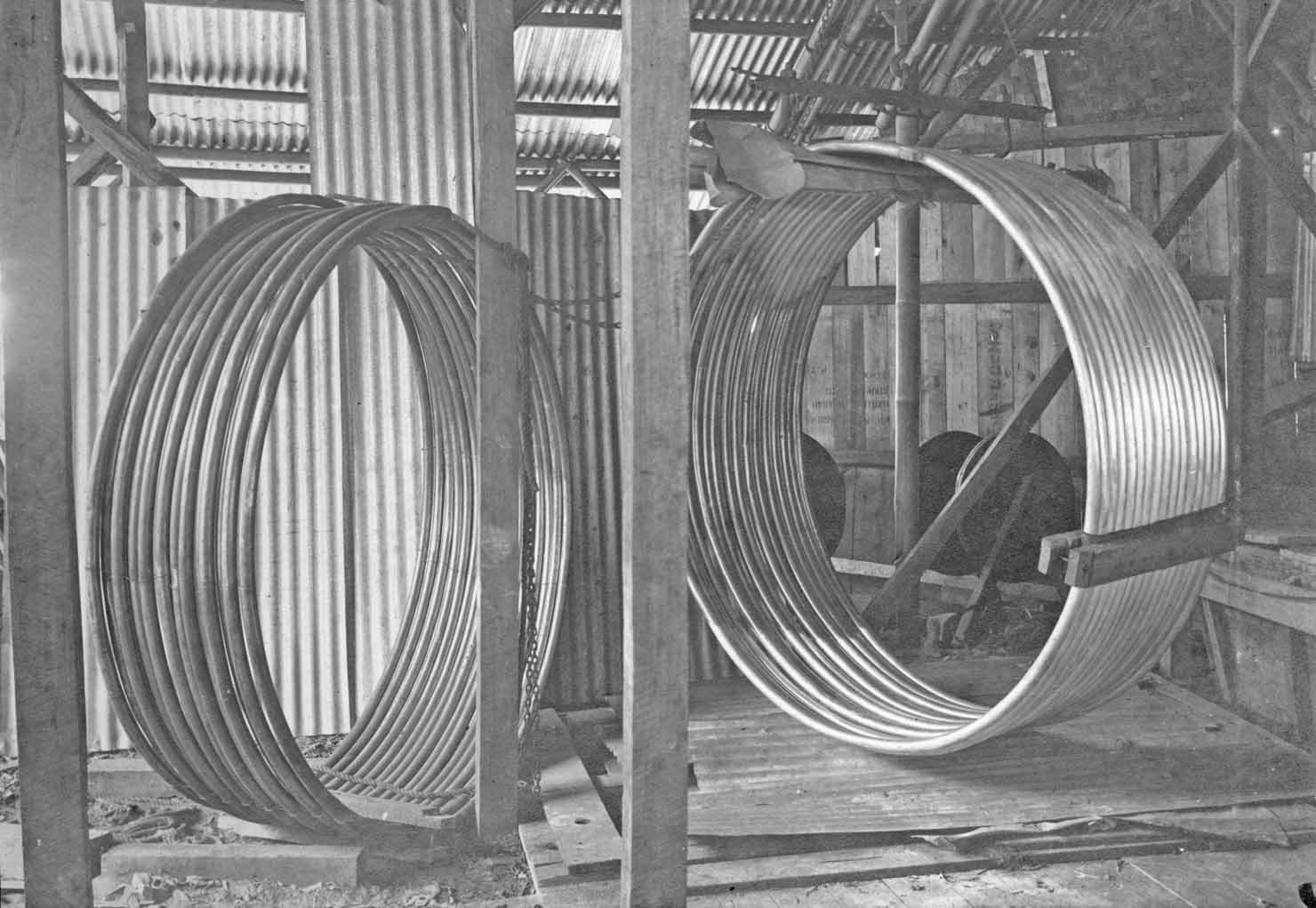

Spoelen

Coils, one should more adequately name it coils under construction, or building up coils, or that like.



Page 54





12 October 1921

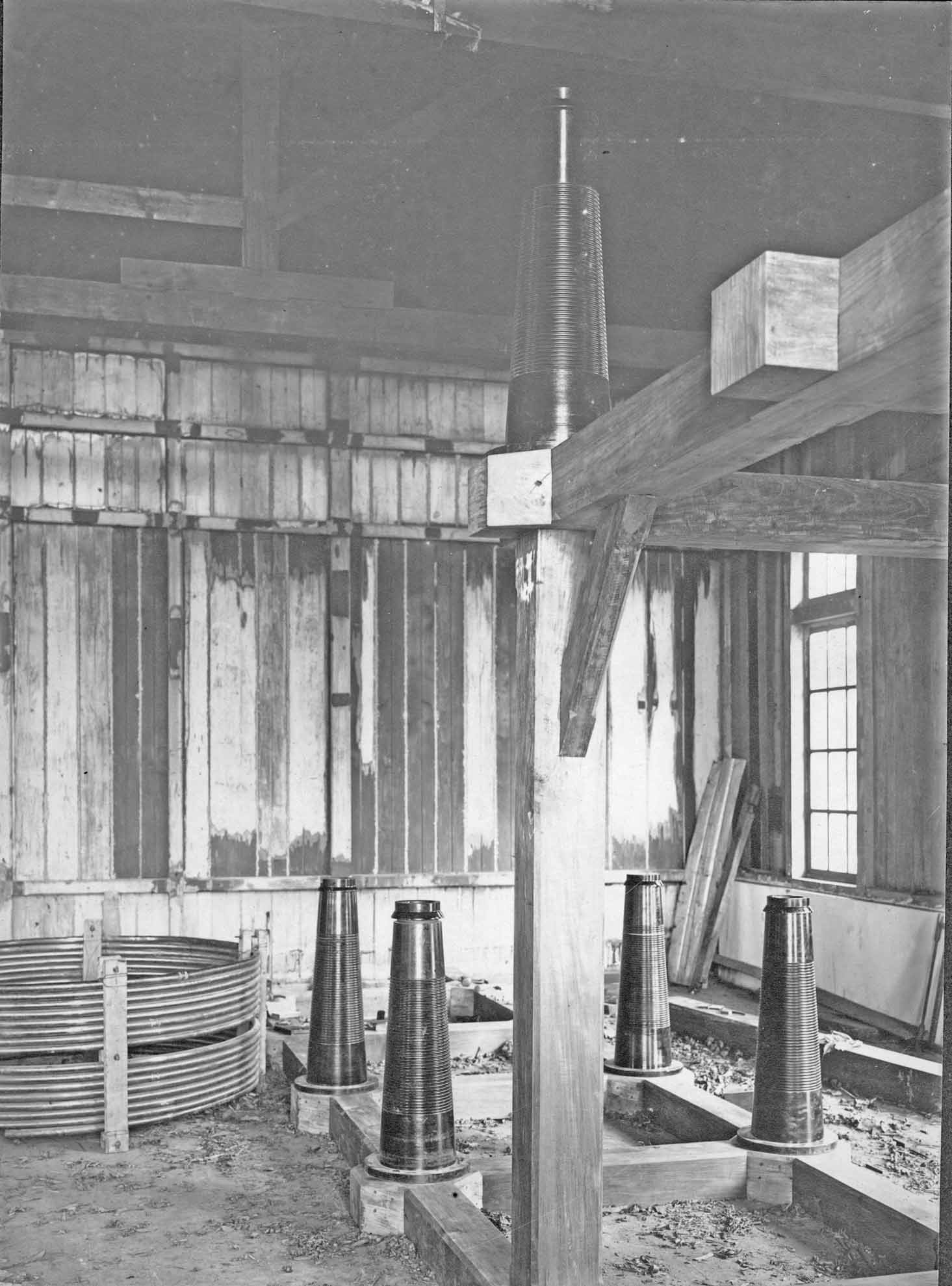

Antenneverlengspoelhuis (loading coil under construction)



Page 55





12 October 1921

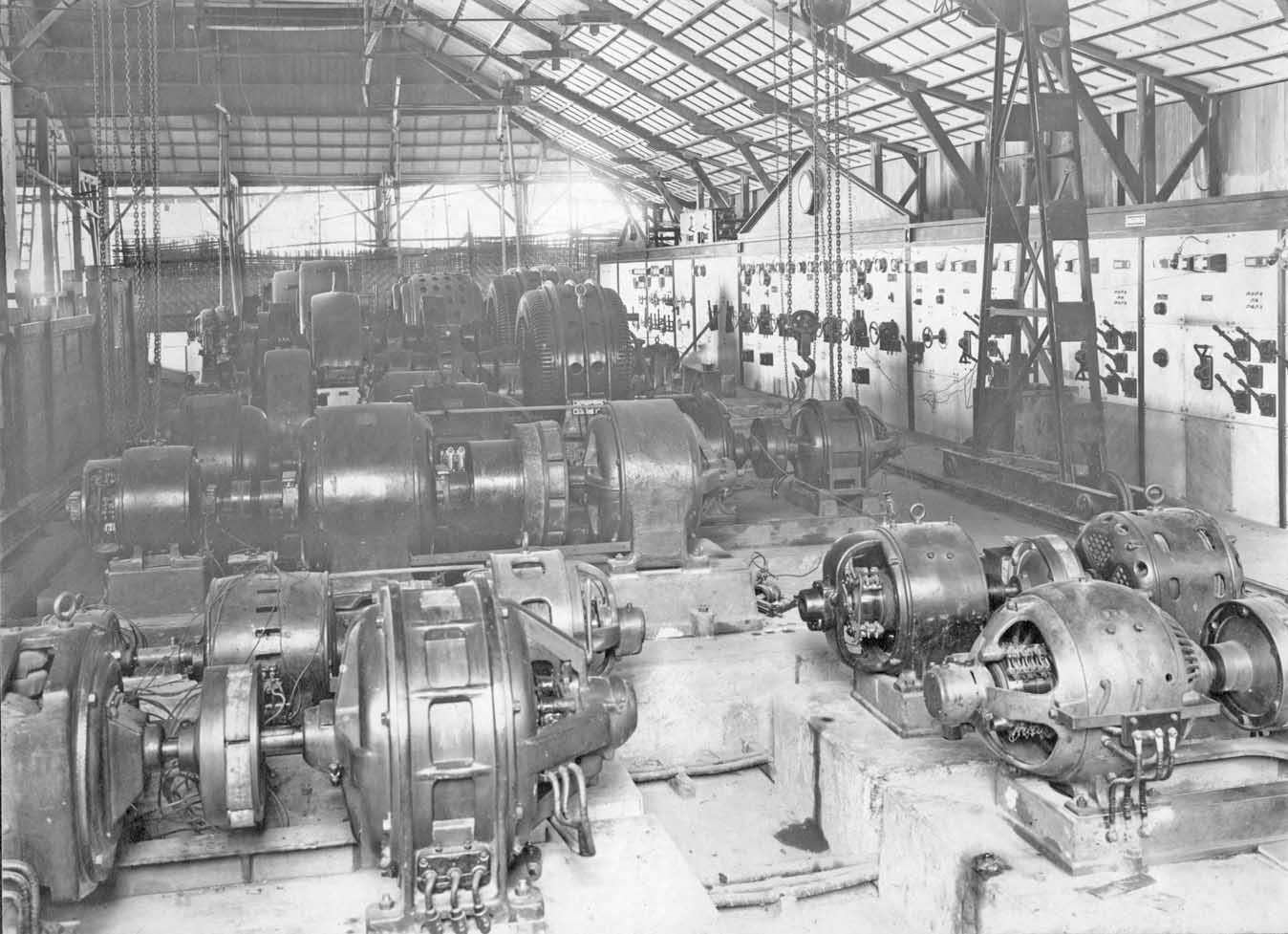

On the left-hand the caption notes: Machinehal, on the right: Motoren van de grote boog.



Page 56





12 October 1921

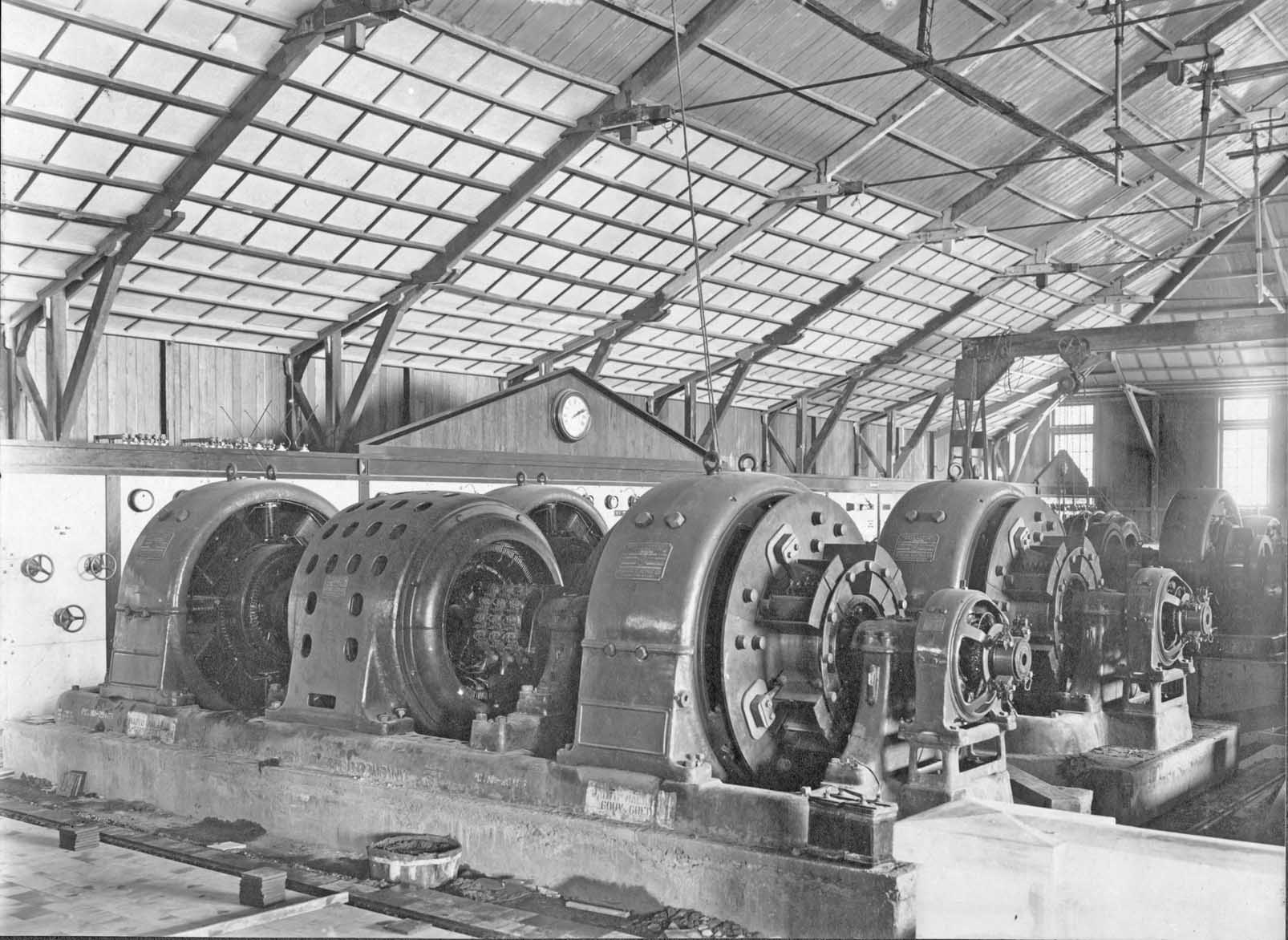

The left caption: Machinehal. On the right: Motoren van de grote boog.



Page 57





12 October 1921

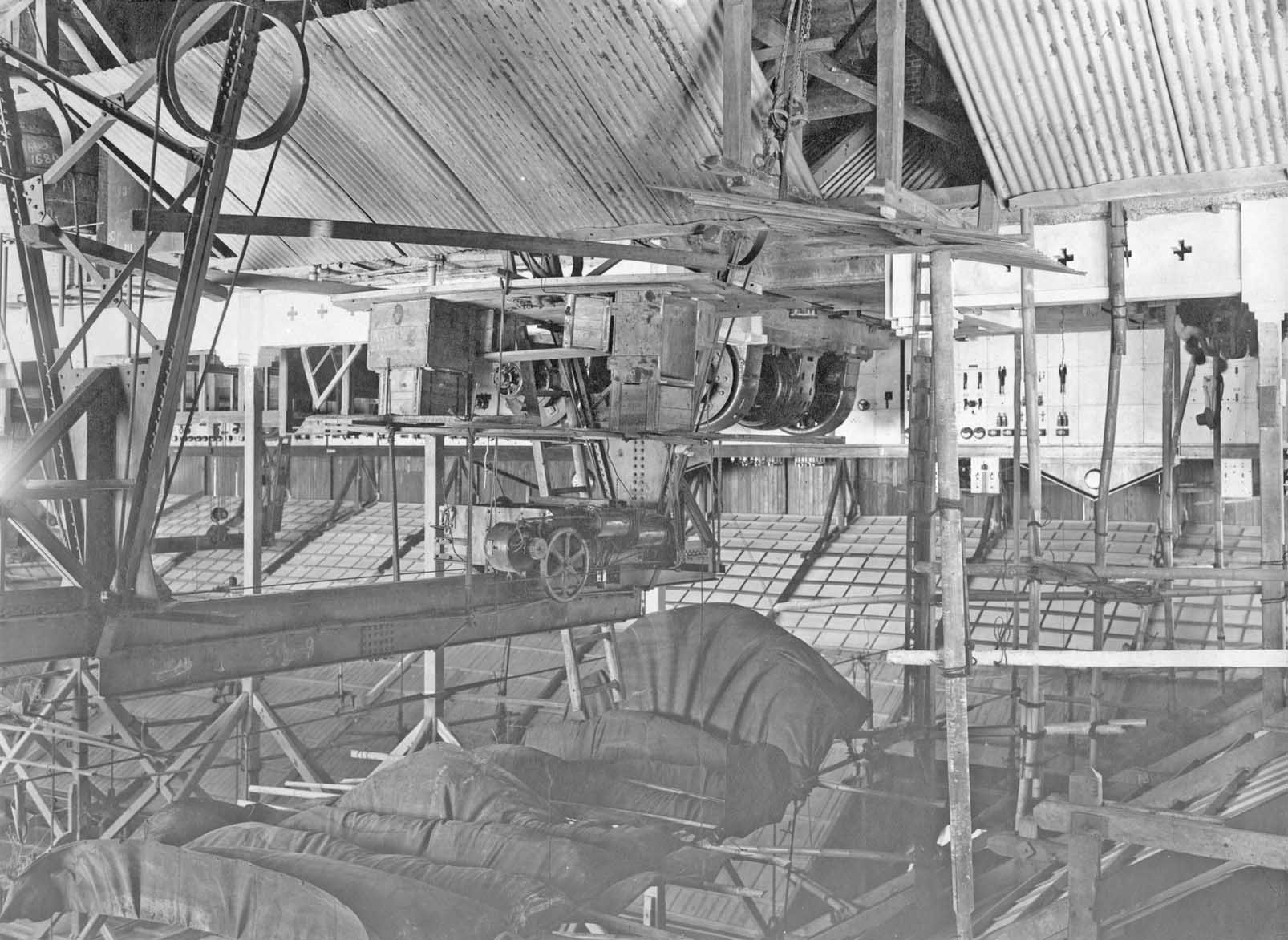

Machinehal

There is much more to discover when you look closely to the various techniques involved.



Page 58





12 October 1921

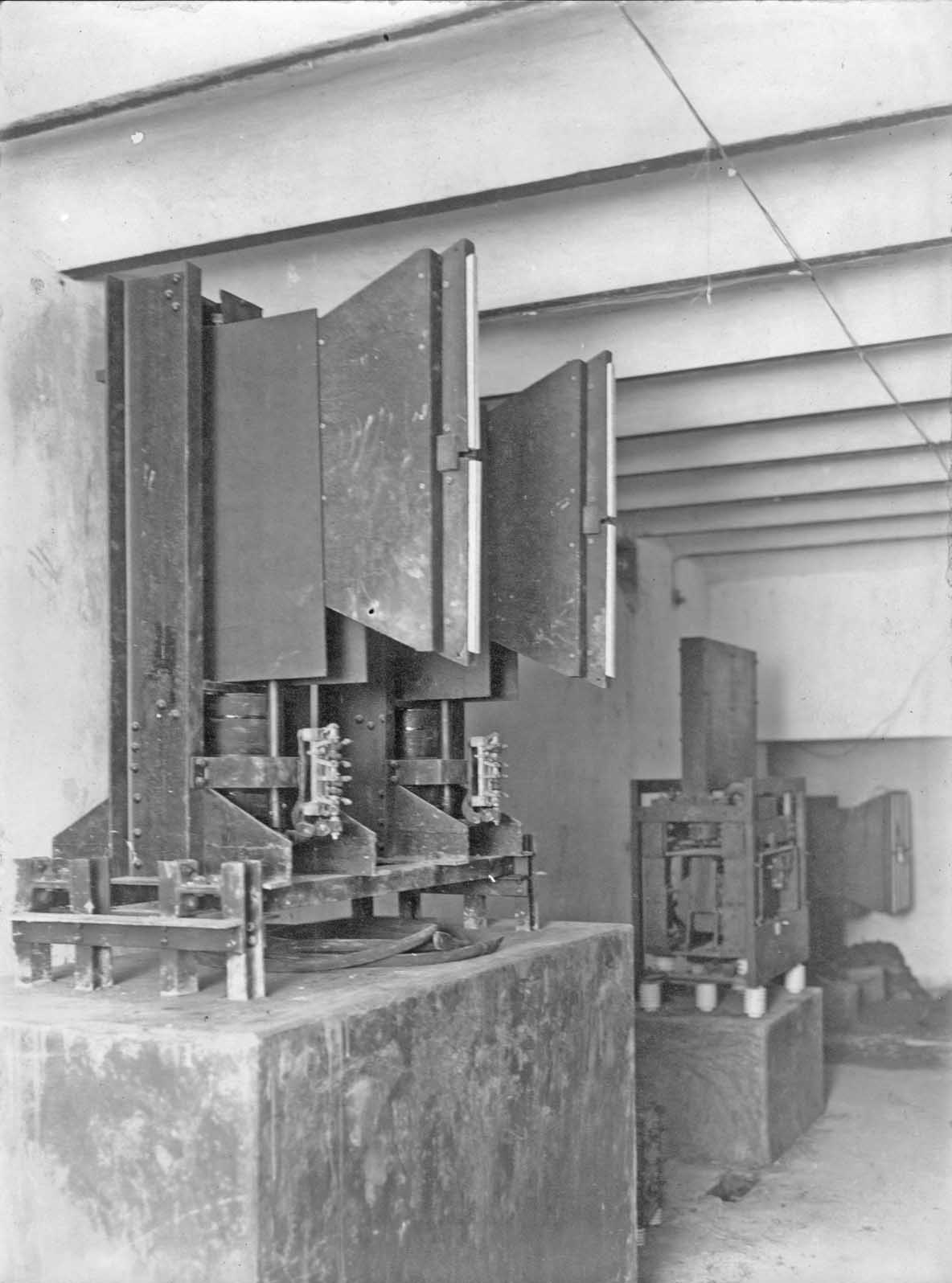

No caption, and we have no idea what is actually shown.





8 November 1921

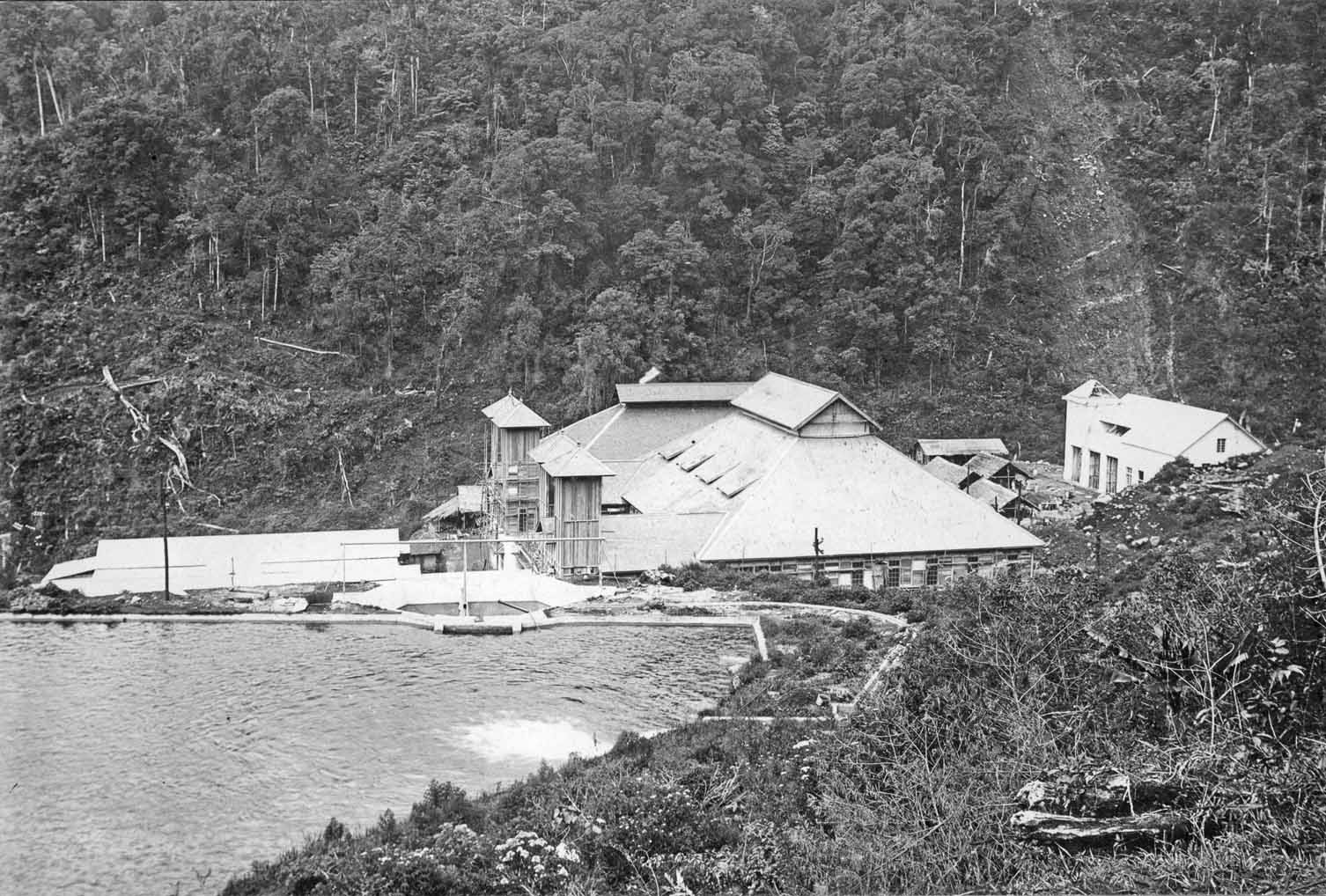

Overzicht

Viewing the higher level cooling pond. In the distance the main Radio Malabar station building.





8 November 1921

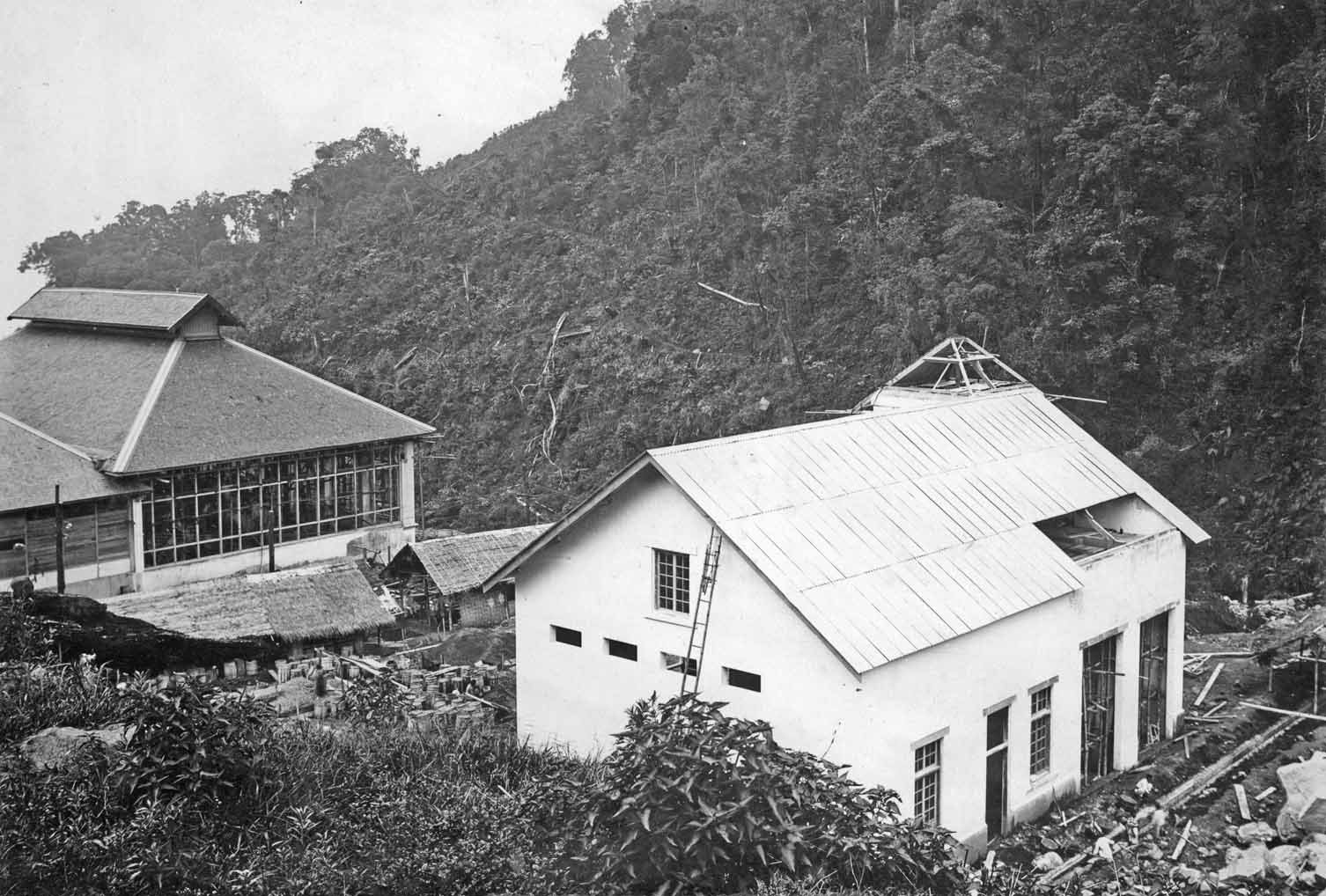

On the left-hand side the rear window of the Telefunken attached transmitter hall, on the right the storage and likely utility building.



Page 59





8 November 1921

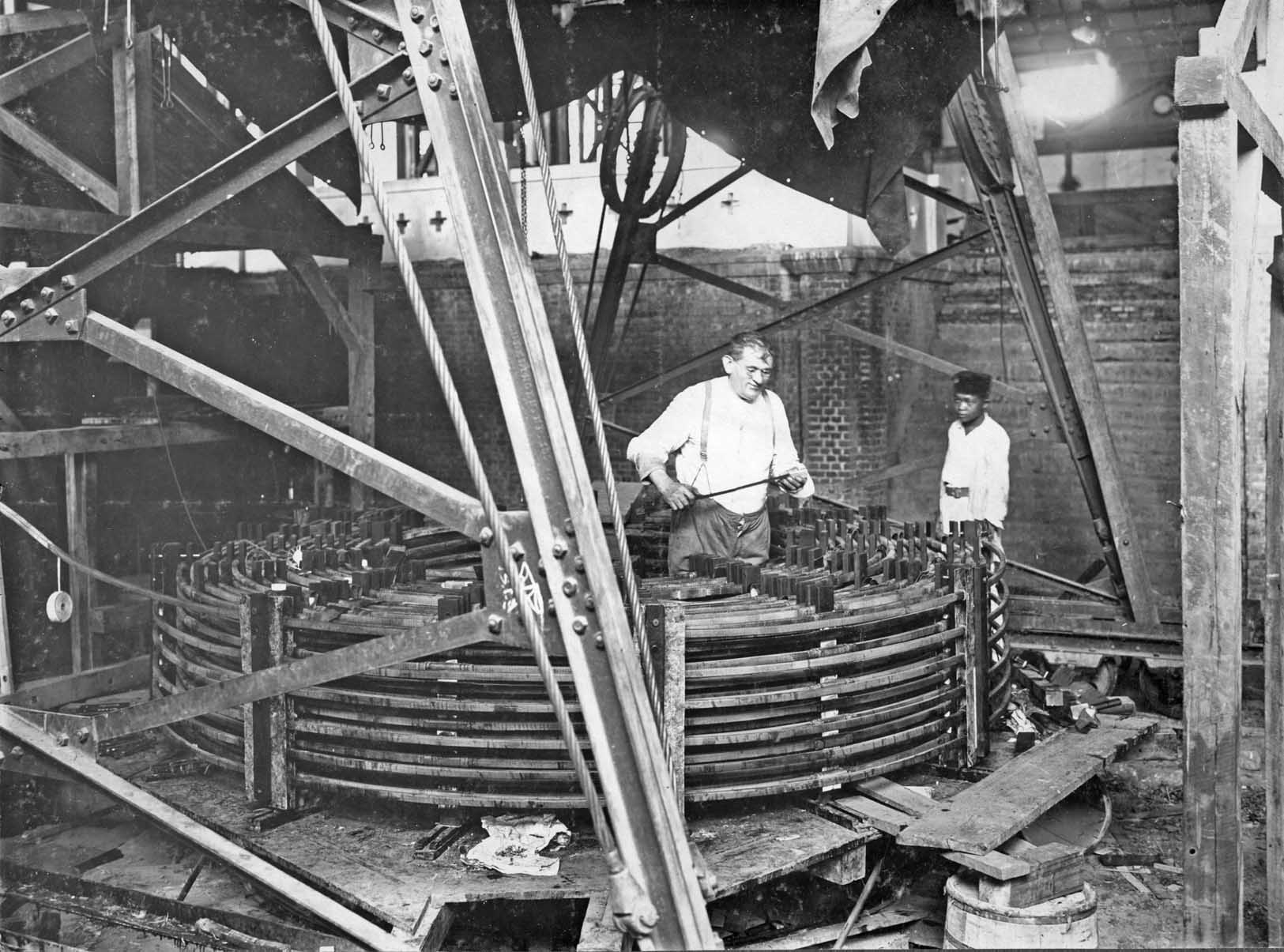

Magneetspoel voor de boog

The caption mentions magnetic coil, this is not entirely correct, what it did was it constituted the HF spark-gap output signal. Please notice the way the coils were implemented in the system



Page 60





8 November 1921

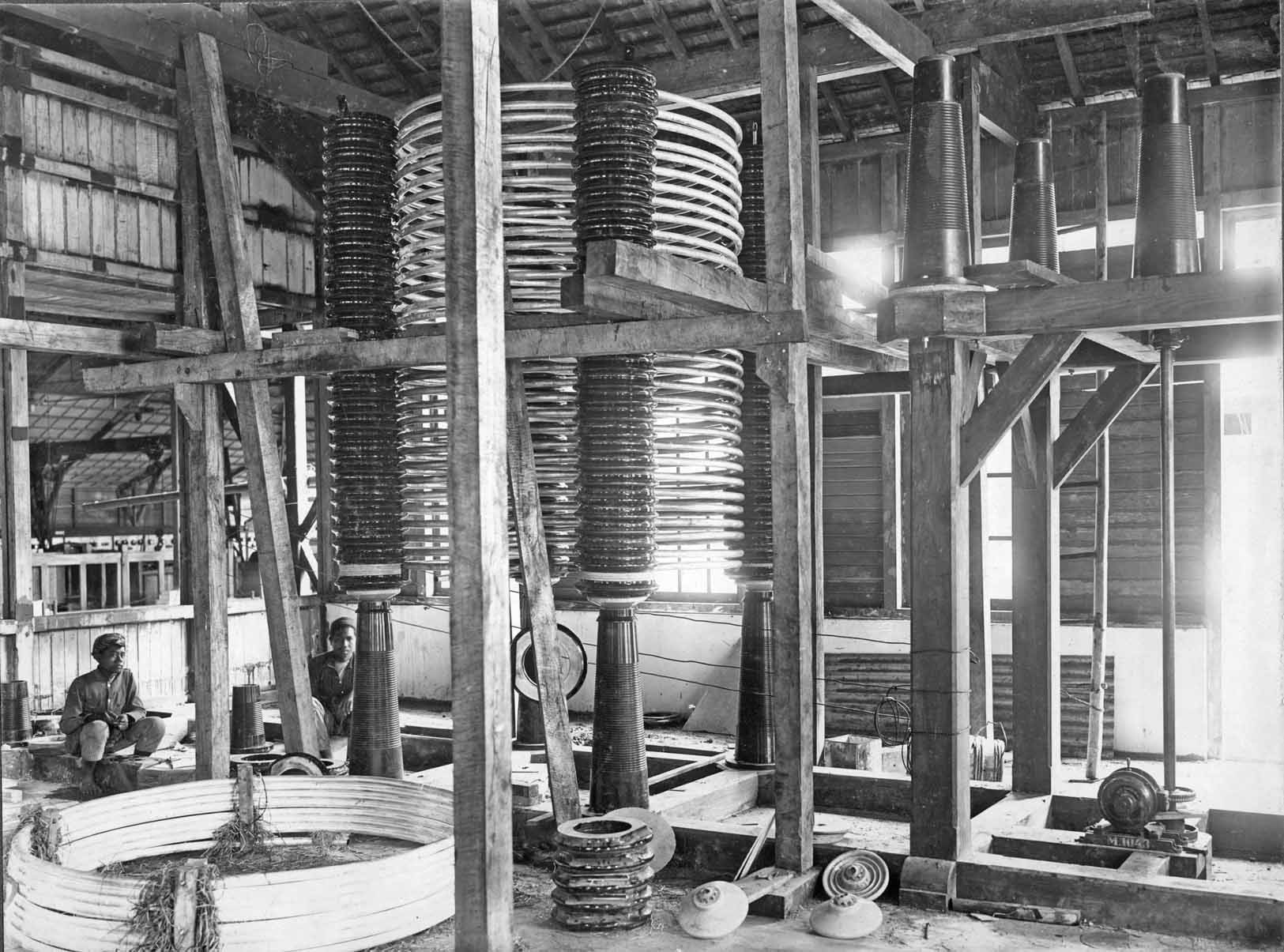

On the left, incorrect: Verlengspoel zelfinductie; on the right Afstemming van de antenne

The bundle of copper wire isn't a coil yet as it is only a coil due to be constructed. Please notice the way it has been bound together. However, please look the electrical motor-driven tuning of the antenna loading coil.



Page 61







8 November 1921

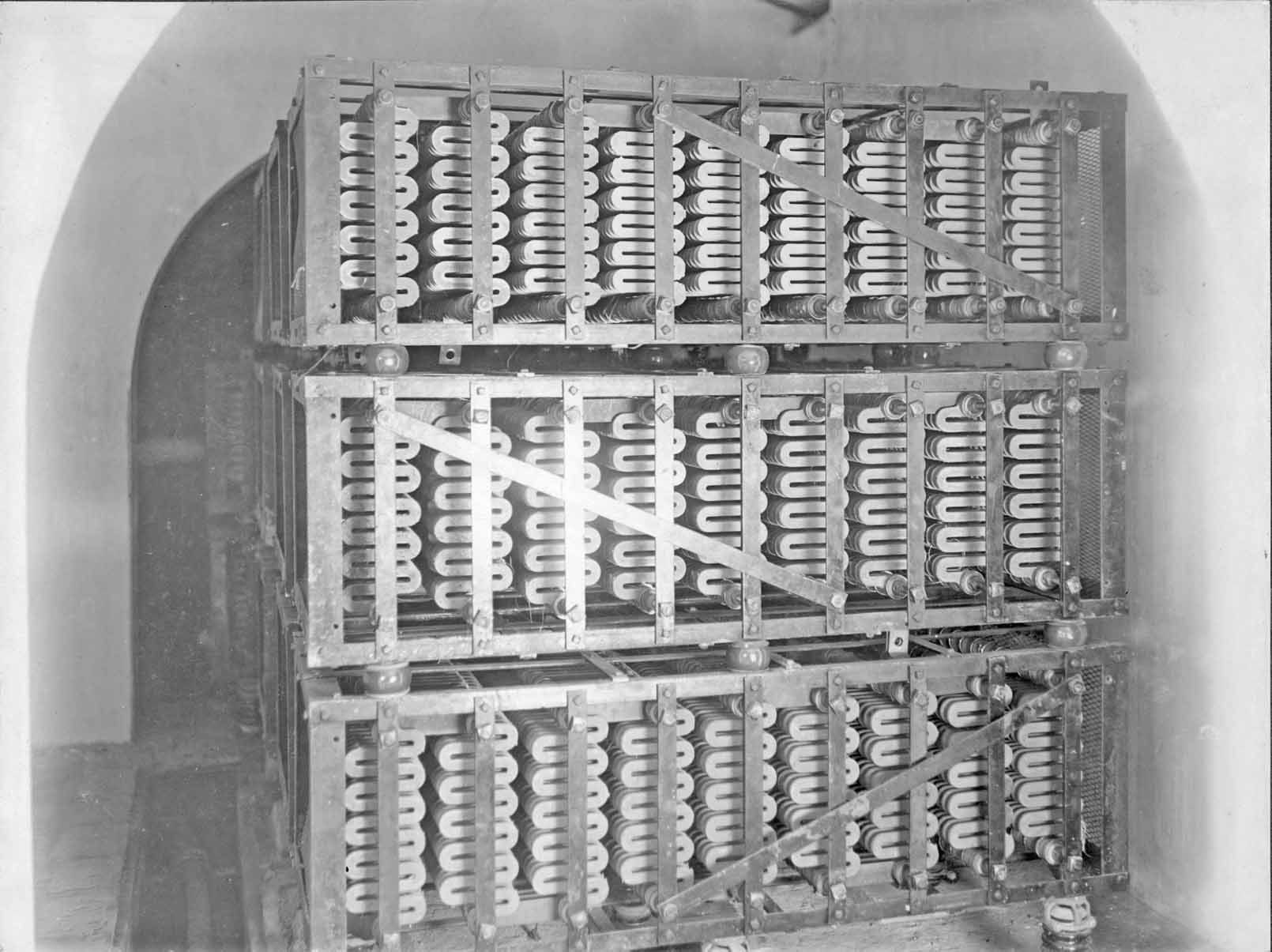

Weerstandsbank

Please notice in its rear the air funnel for air-flow cooling.



Page 62





3 December 1921

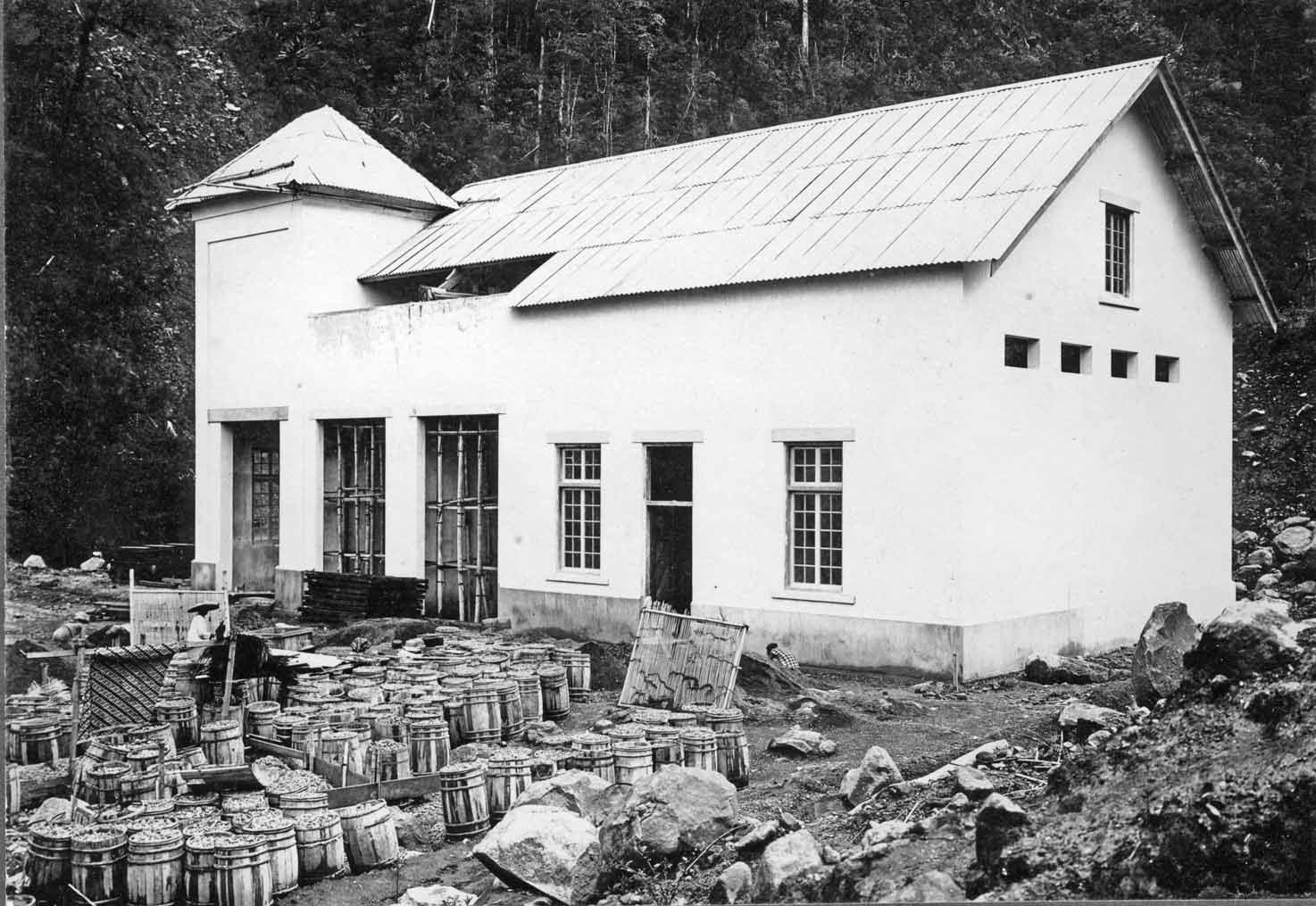

Magazyn

Storage and/or utility building, which was situated in the rear of the Telefunken transmitter section.

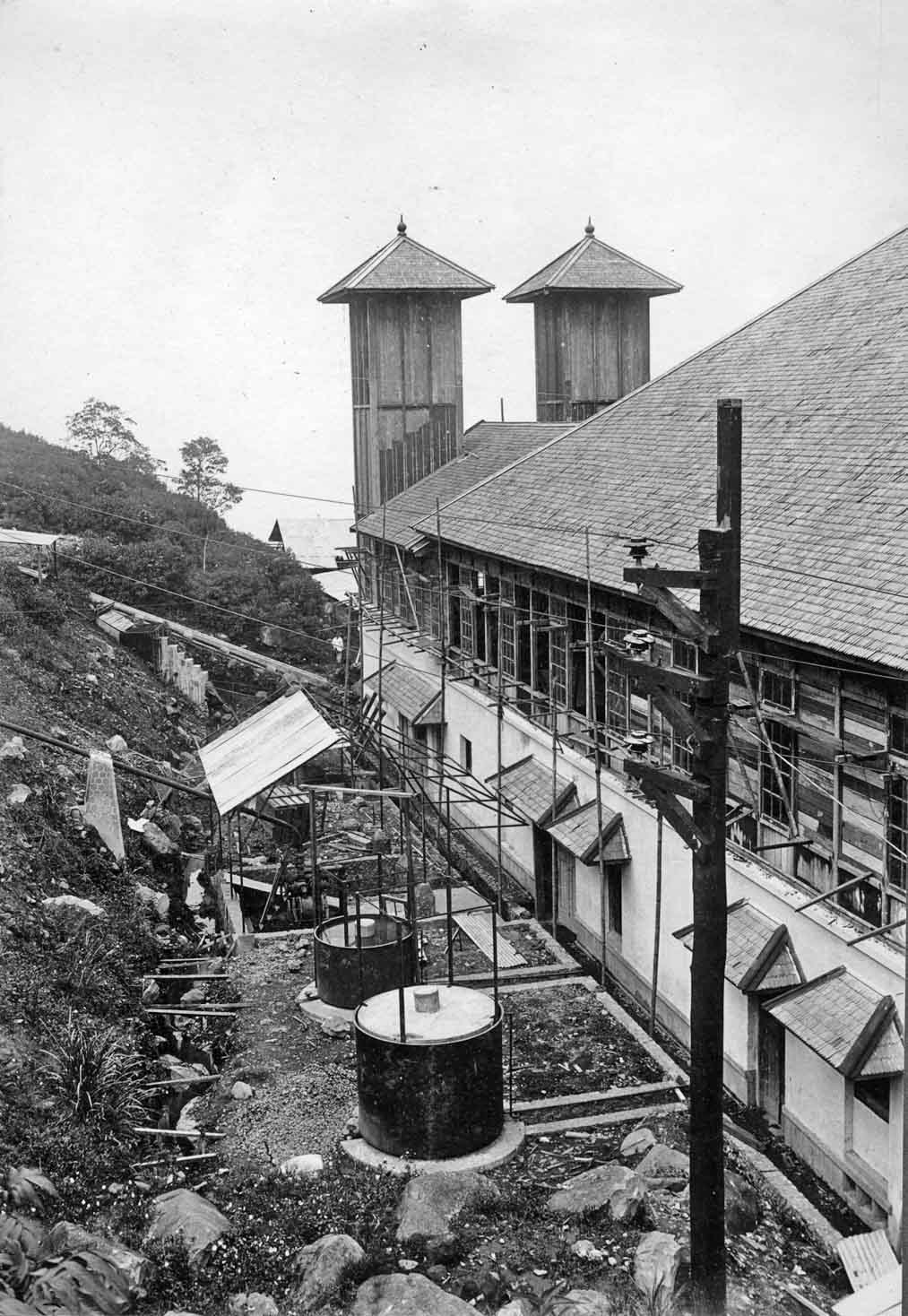

3 December 1921

I don't know what the purpose of the circular construction left of the main transmitter hal is. Cooling?



Page 63





3 December 1921

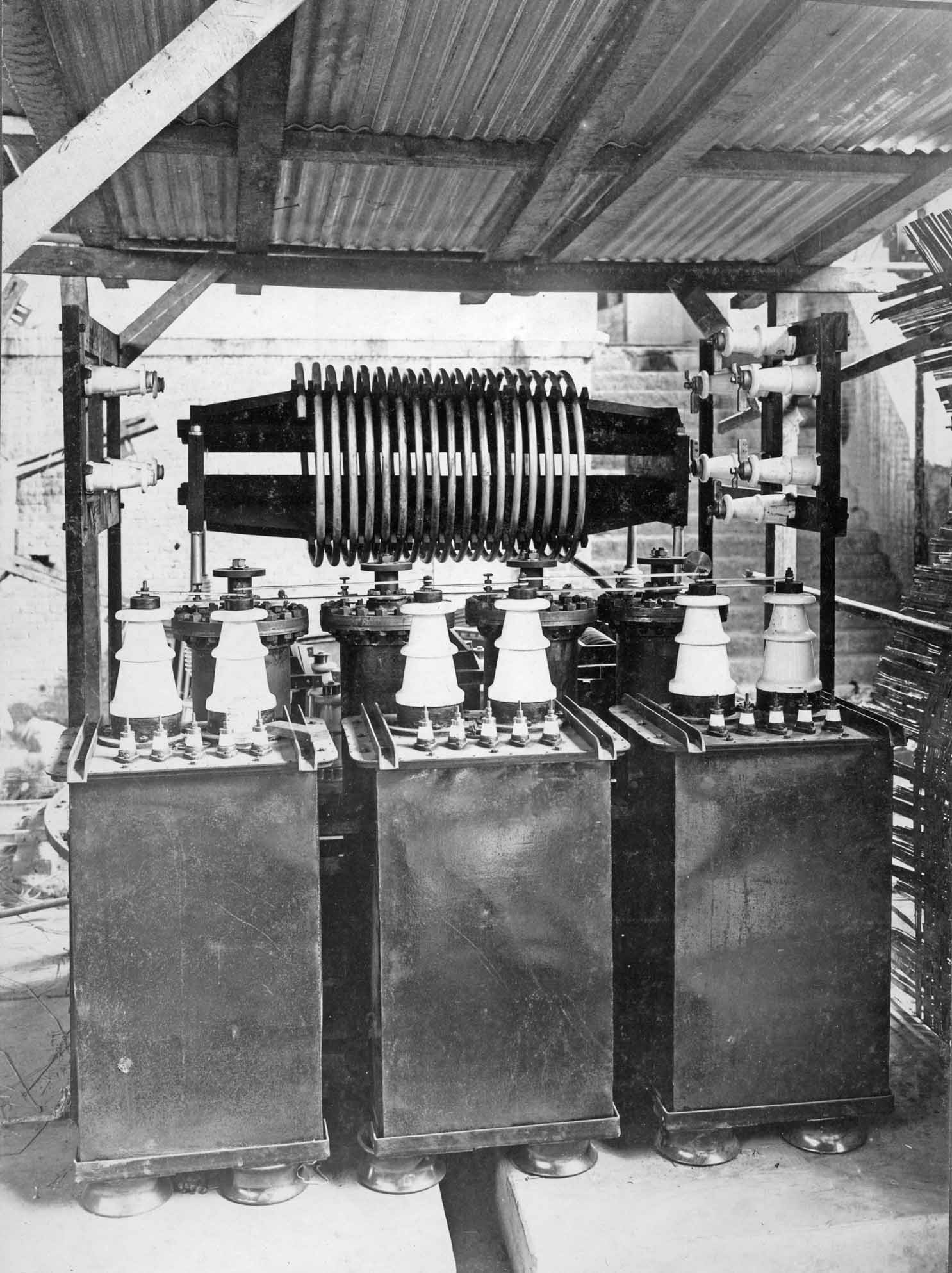

Transformator met afgestemde kring



Page 64





3 December 1921

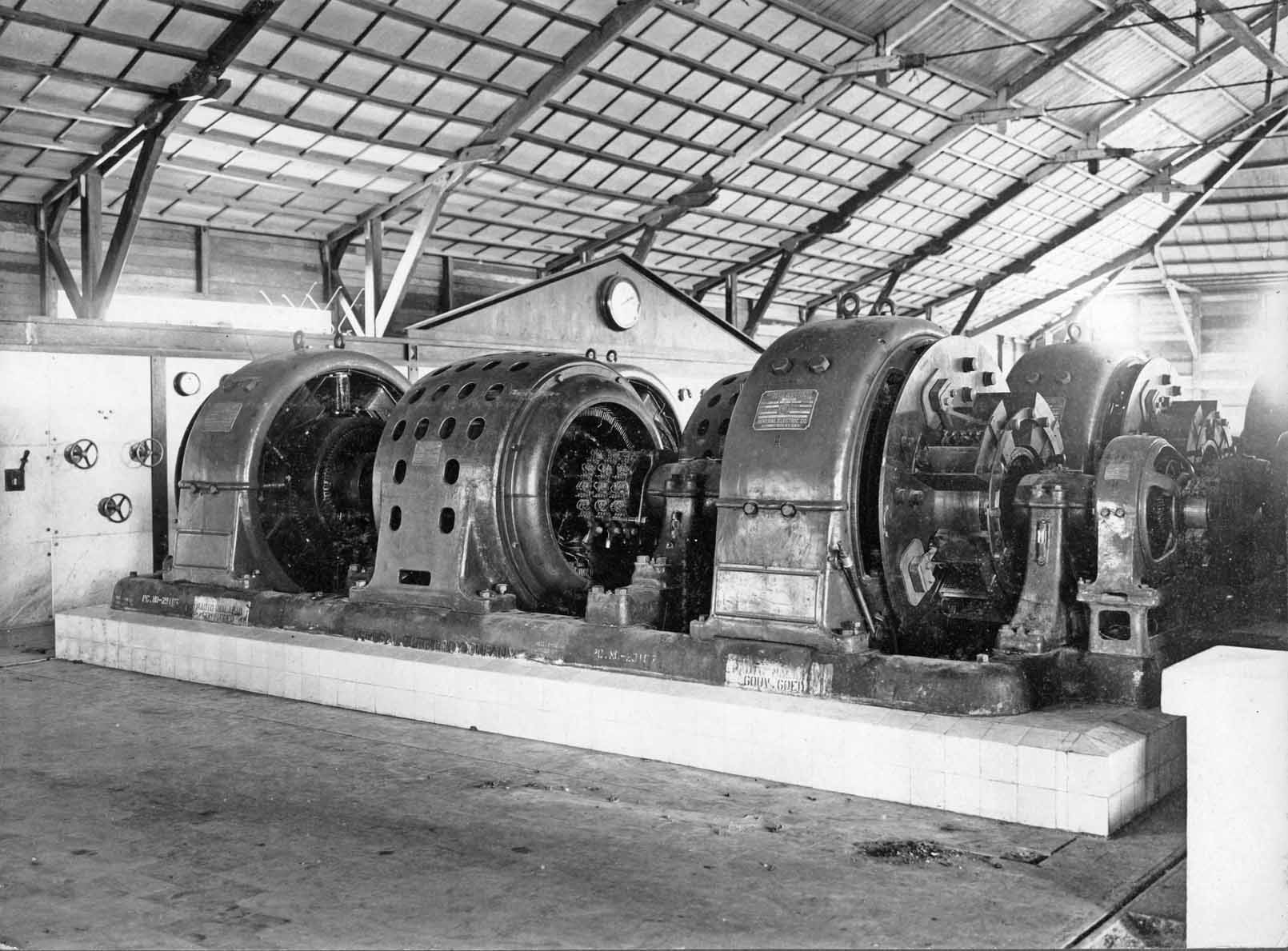

Turbines    Omvormers it should be!



Page 65





3 December 1921

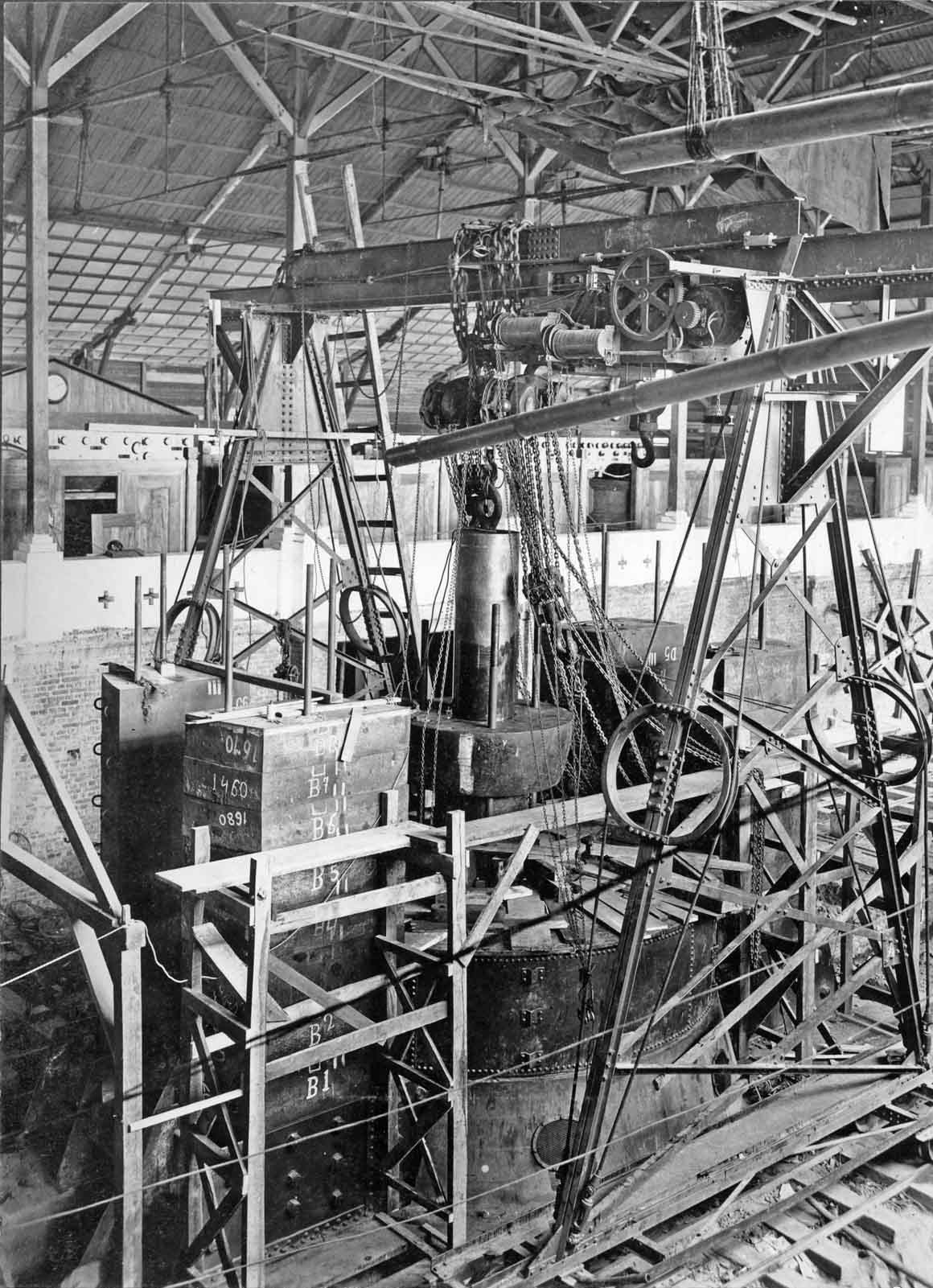

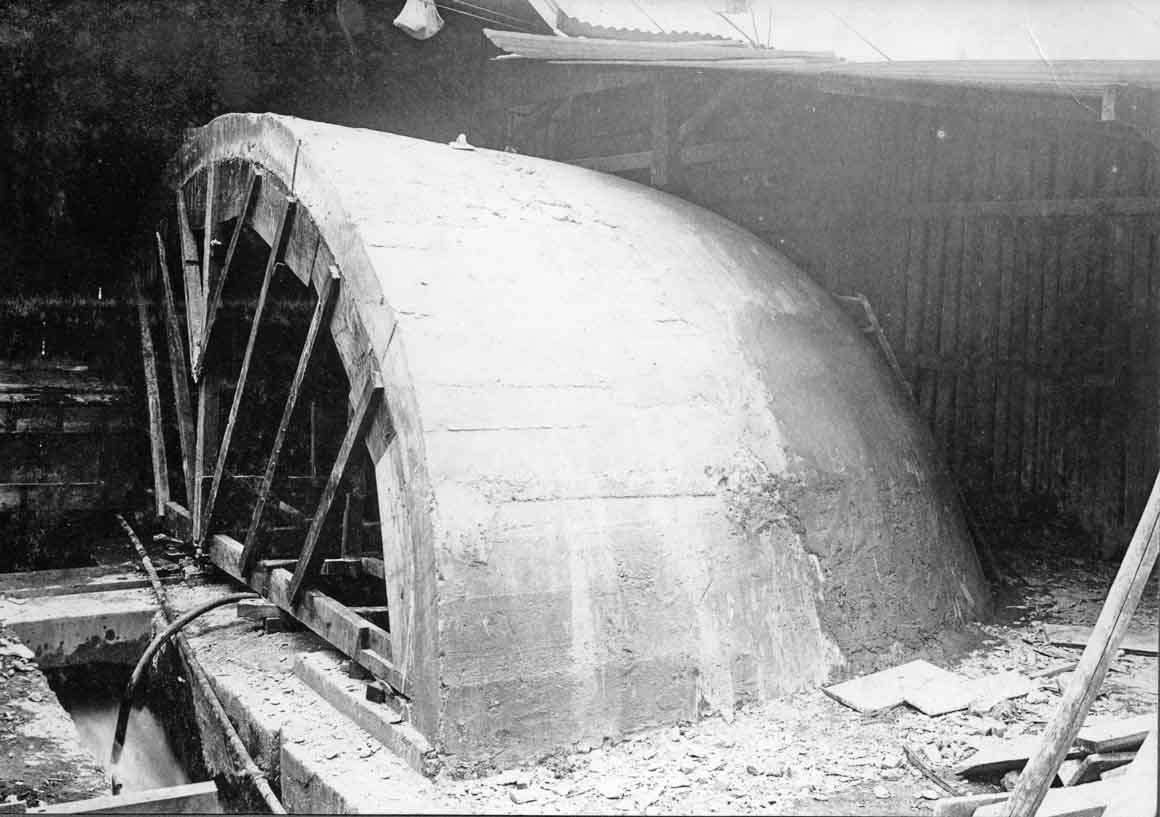

Opbouw boogkamer

Showing the construction of the Poulsen type spark-gap generator. A bit chaotic, however, interesting is to see how they commenced building it.





3 December 1921

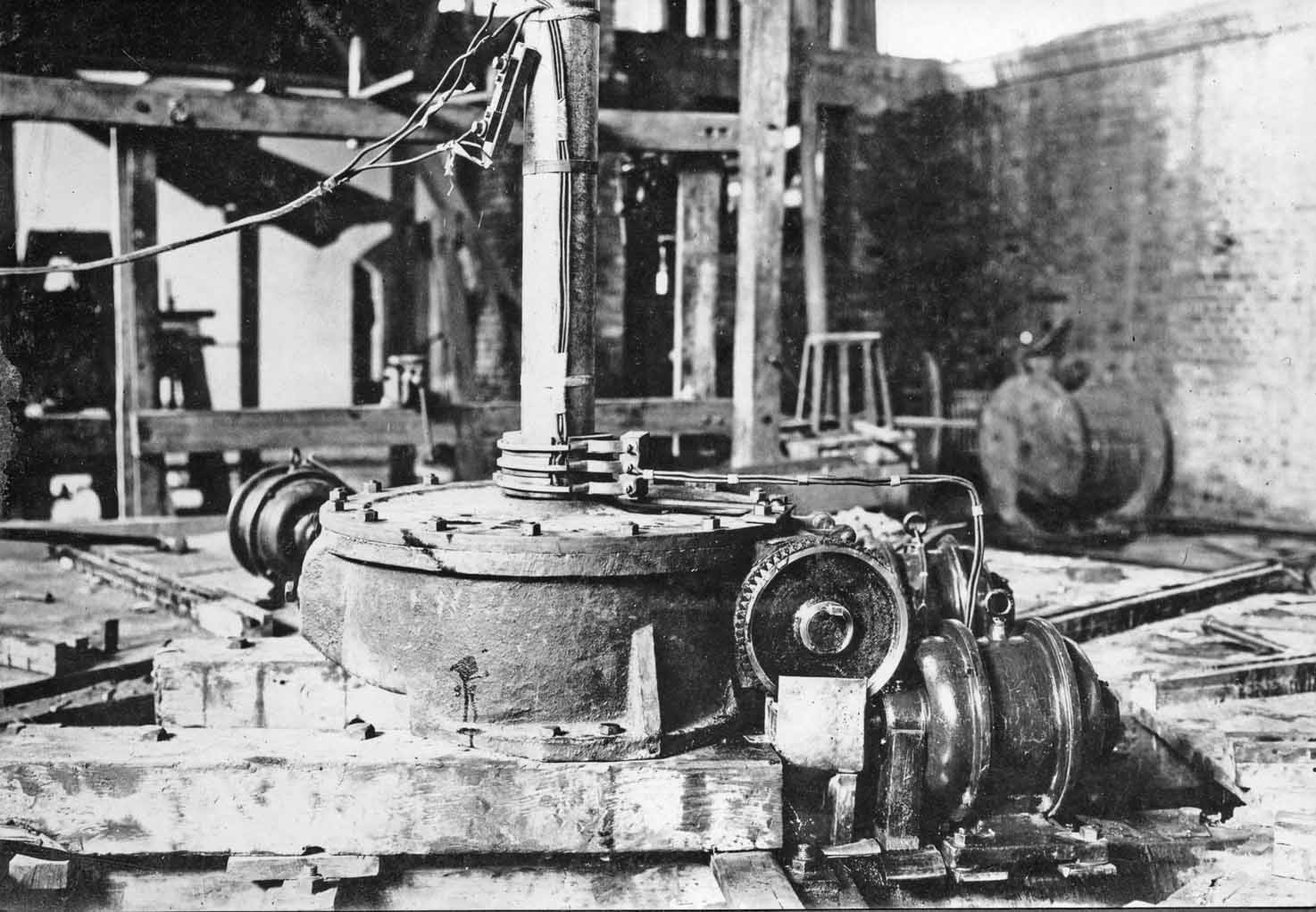

What its puspose once was we don't know





3 December 1921

My guess: was this construction once meant for winding-up heavy coils?



Page 66





3 December 1921

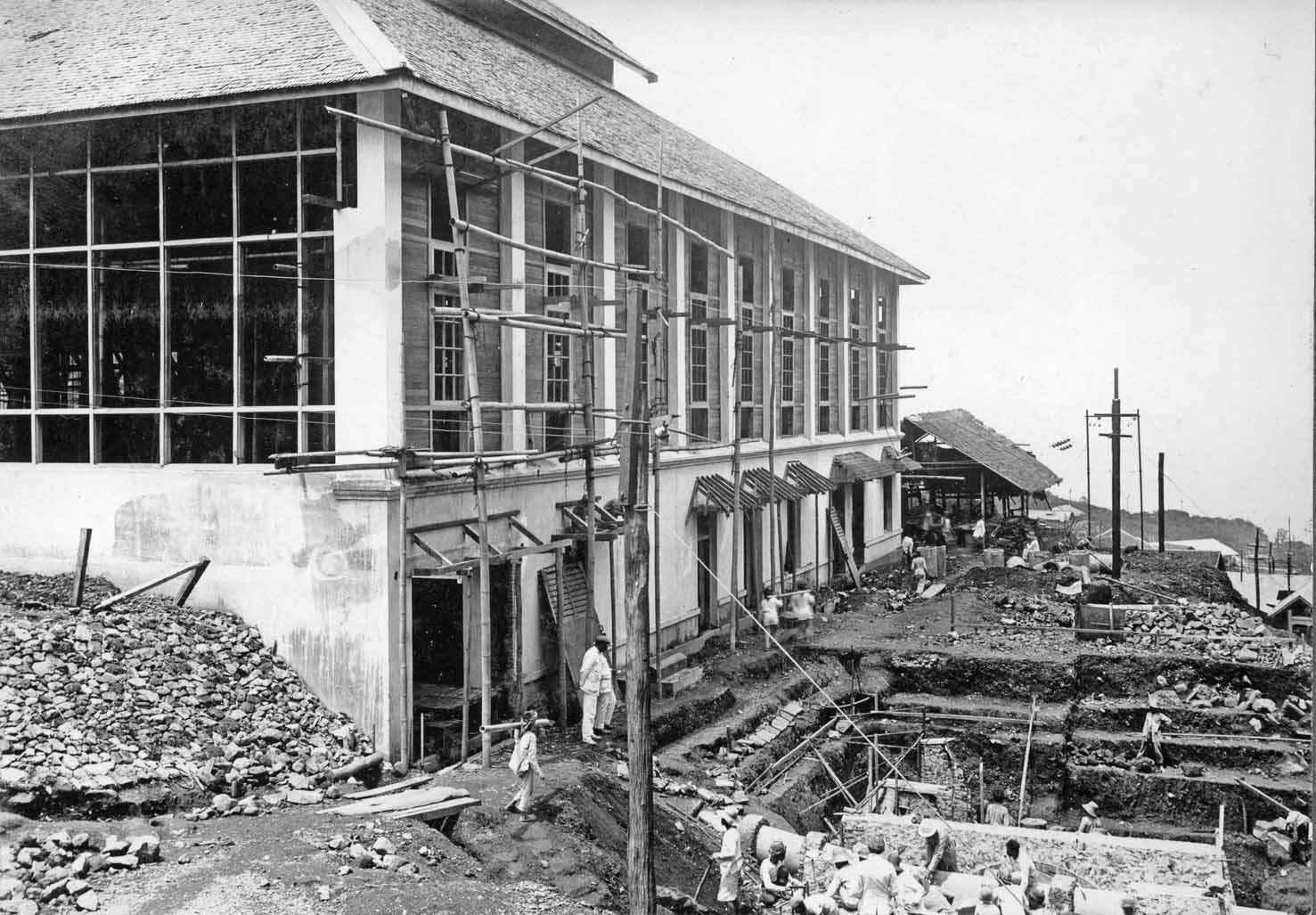

Viewing the construction of the Telefunken section. On the left the future rear windows. The camera facing towards the High-Valley of Bandung.





3 December 1921

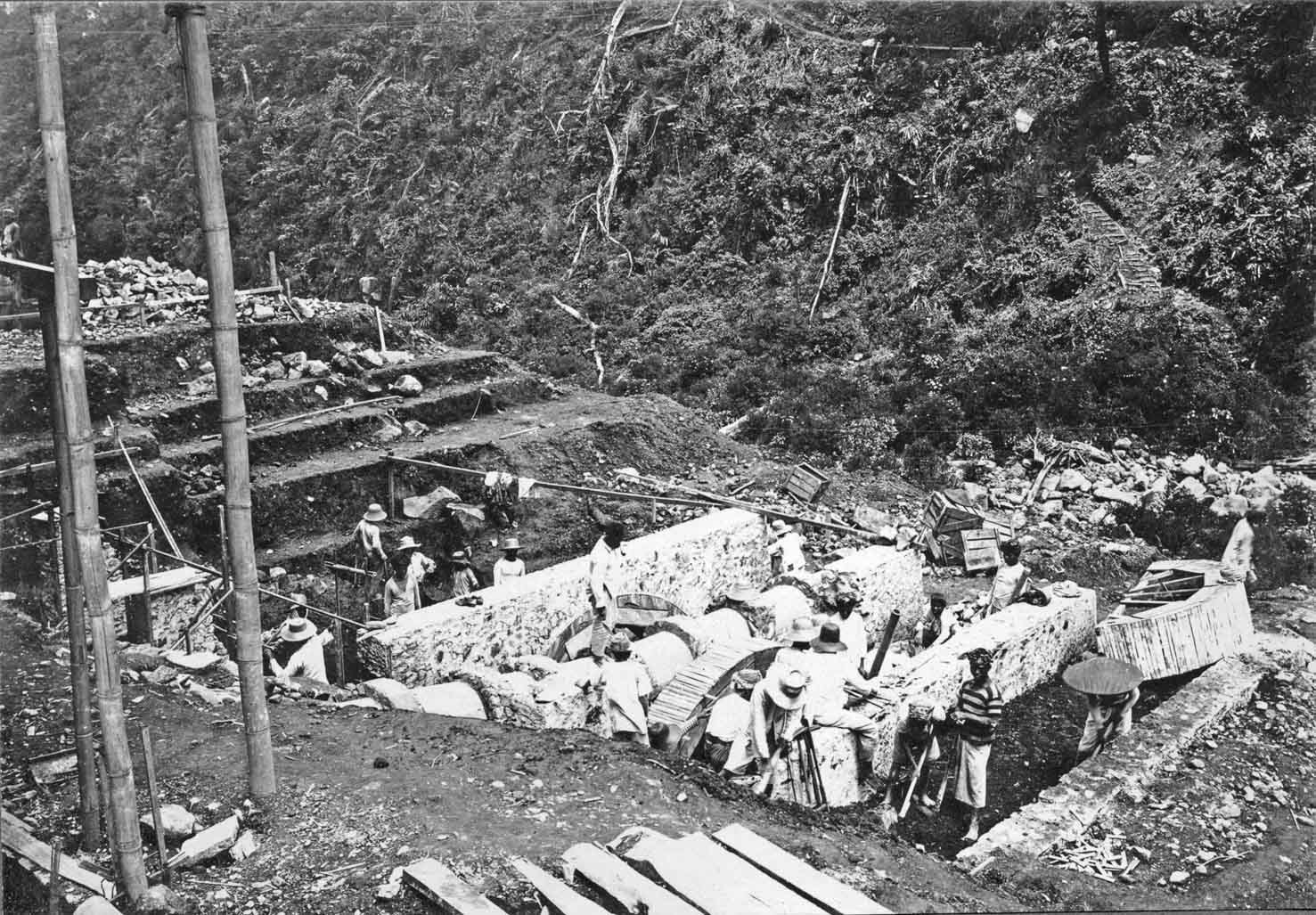

I guess they are constructing a water channel.





11 Januari 1922

Boog in verdere opbouw

Apparently, the lower coil meant for the HF current is being mounted already. Please notice the way the coils were implemented in the system



Page 67





11 Januari 1922

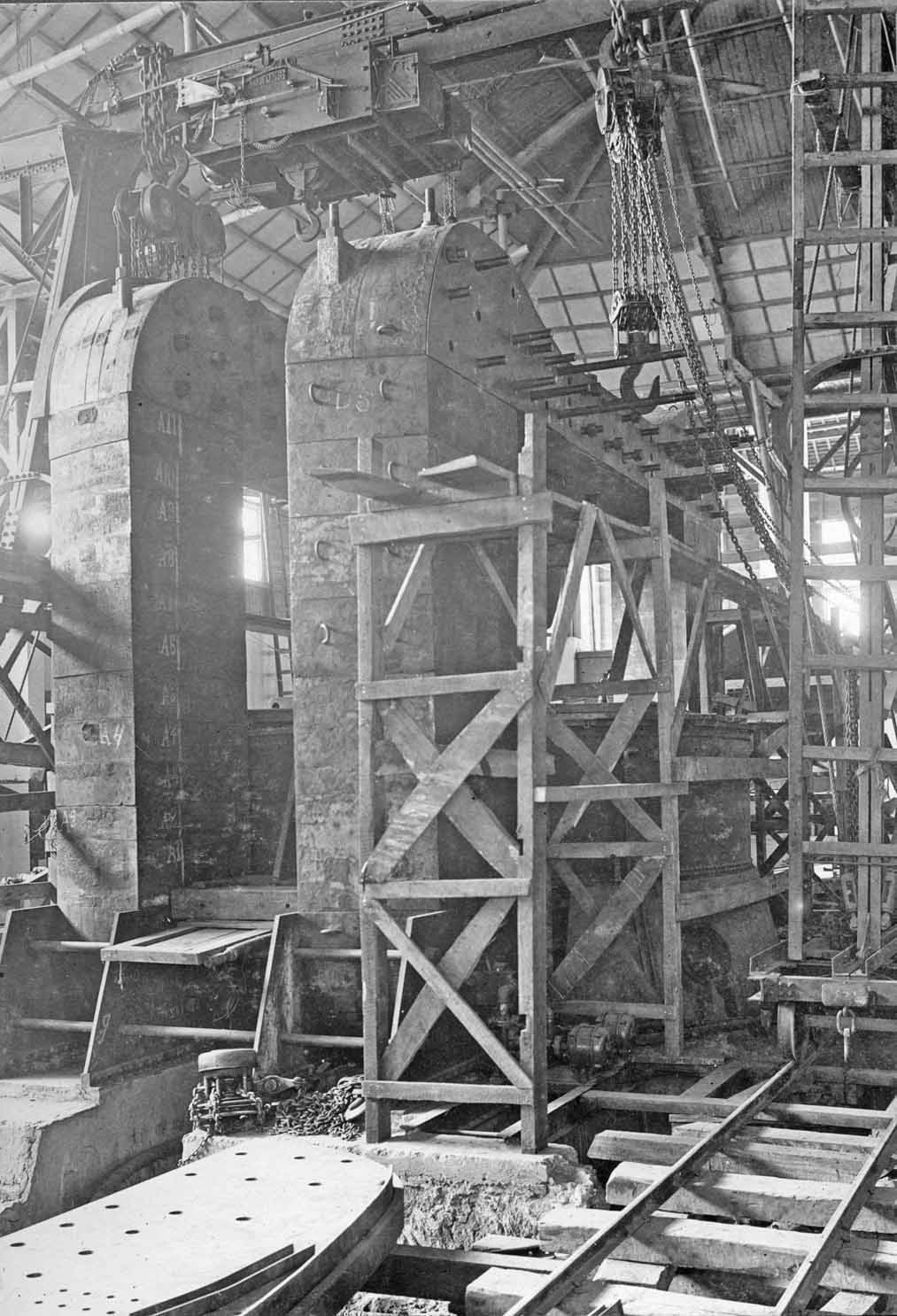

Opbouw grote boog

(construction of the 'big spark')

Please notice the way the coils were implemented in the system





11 Januari 1922

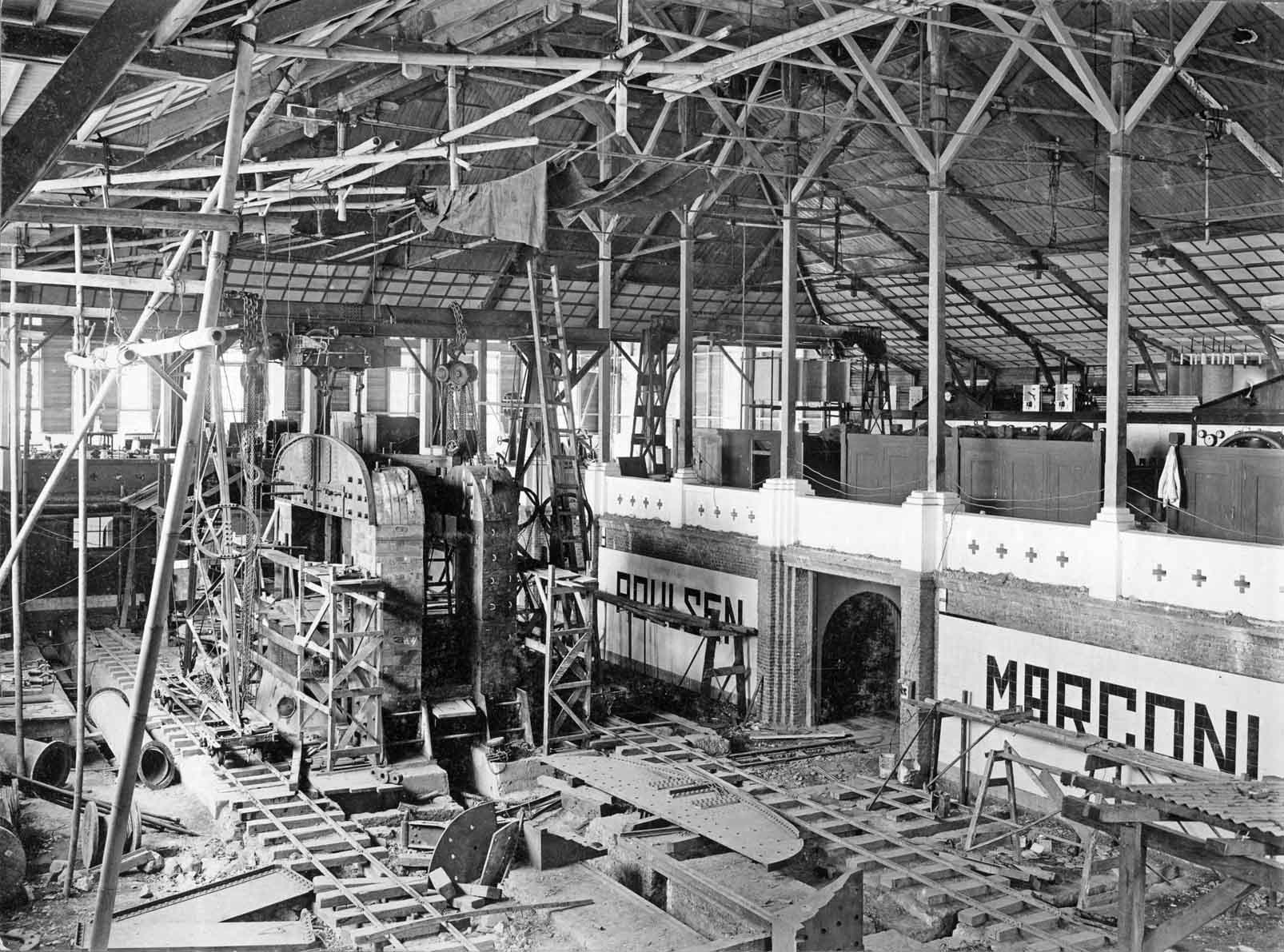

Viewing its construction from a different perspective



Page 68





11 Januari 1922

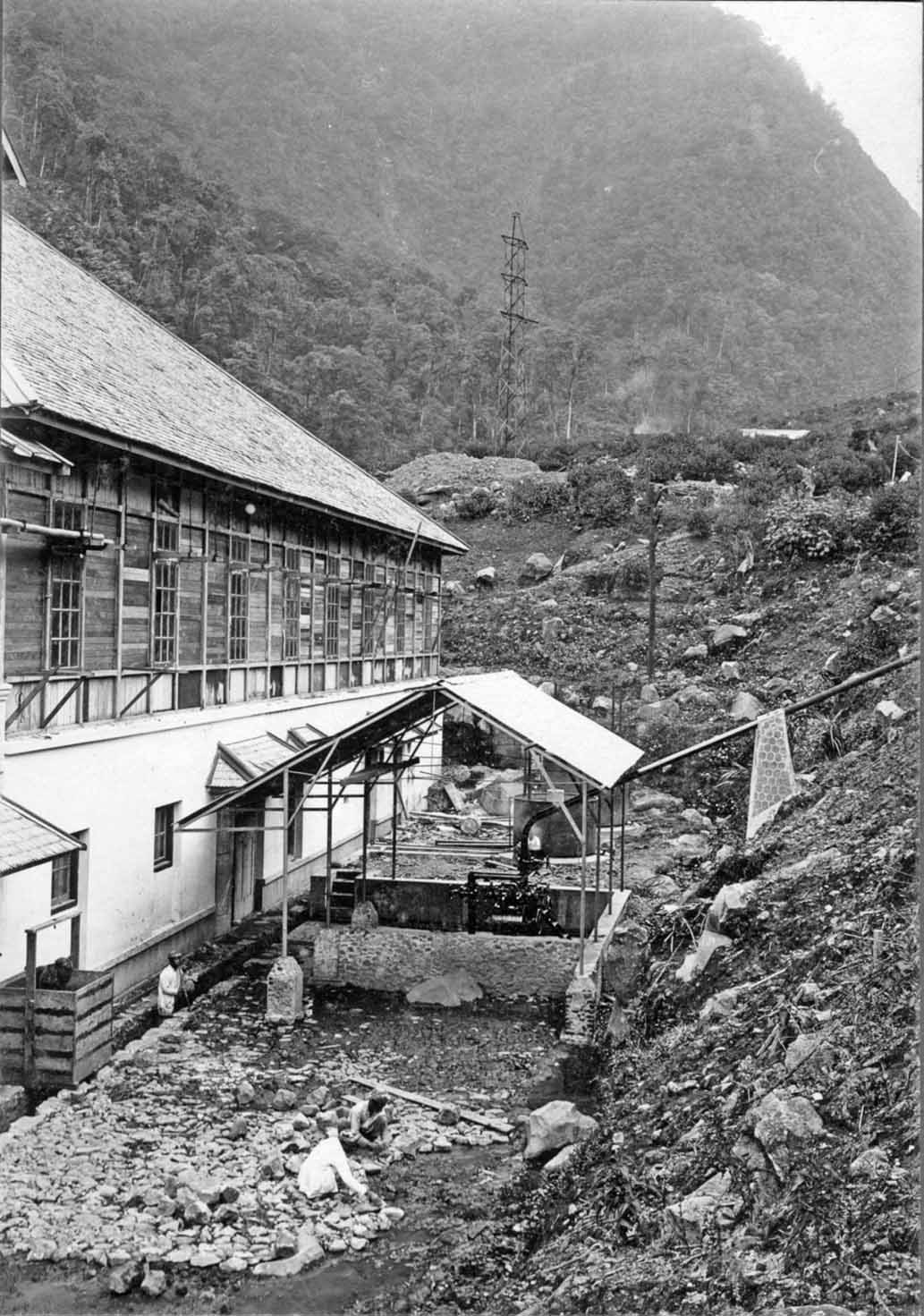

Viewing  the west side of the main transmitter hall, towards the entrance of the canyon.





11 Januari 1922

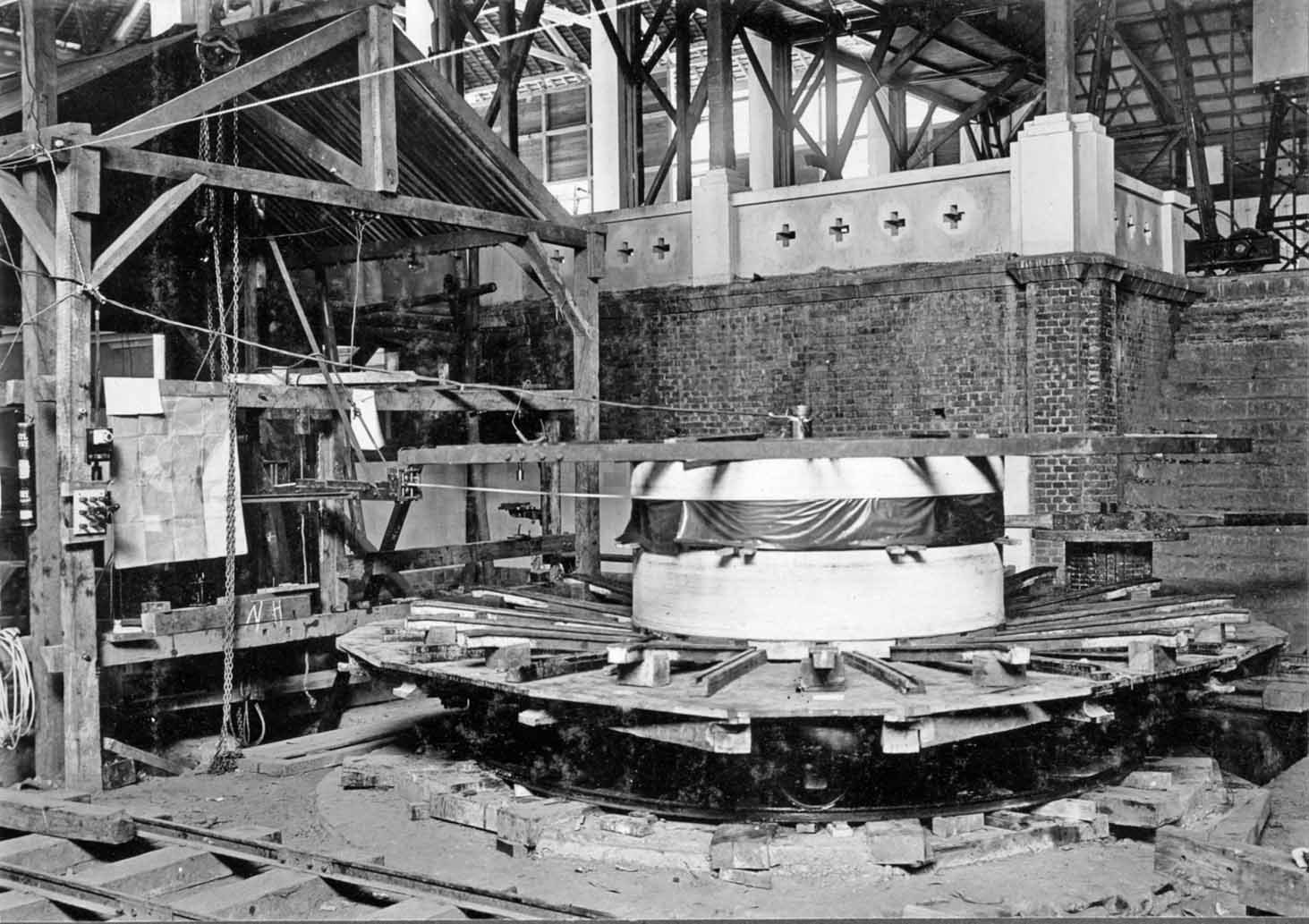

Spoelwikkelen

Winding, likely, the upper (bias current) coil. Please notice the central power feed, which might underline my previous estimation that coil winding was done by means of an electrical motor. Please notice the way the coils were implemented in the system





11 Januari 1922

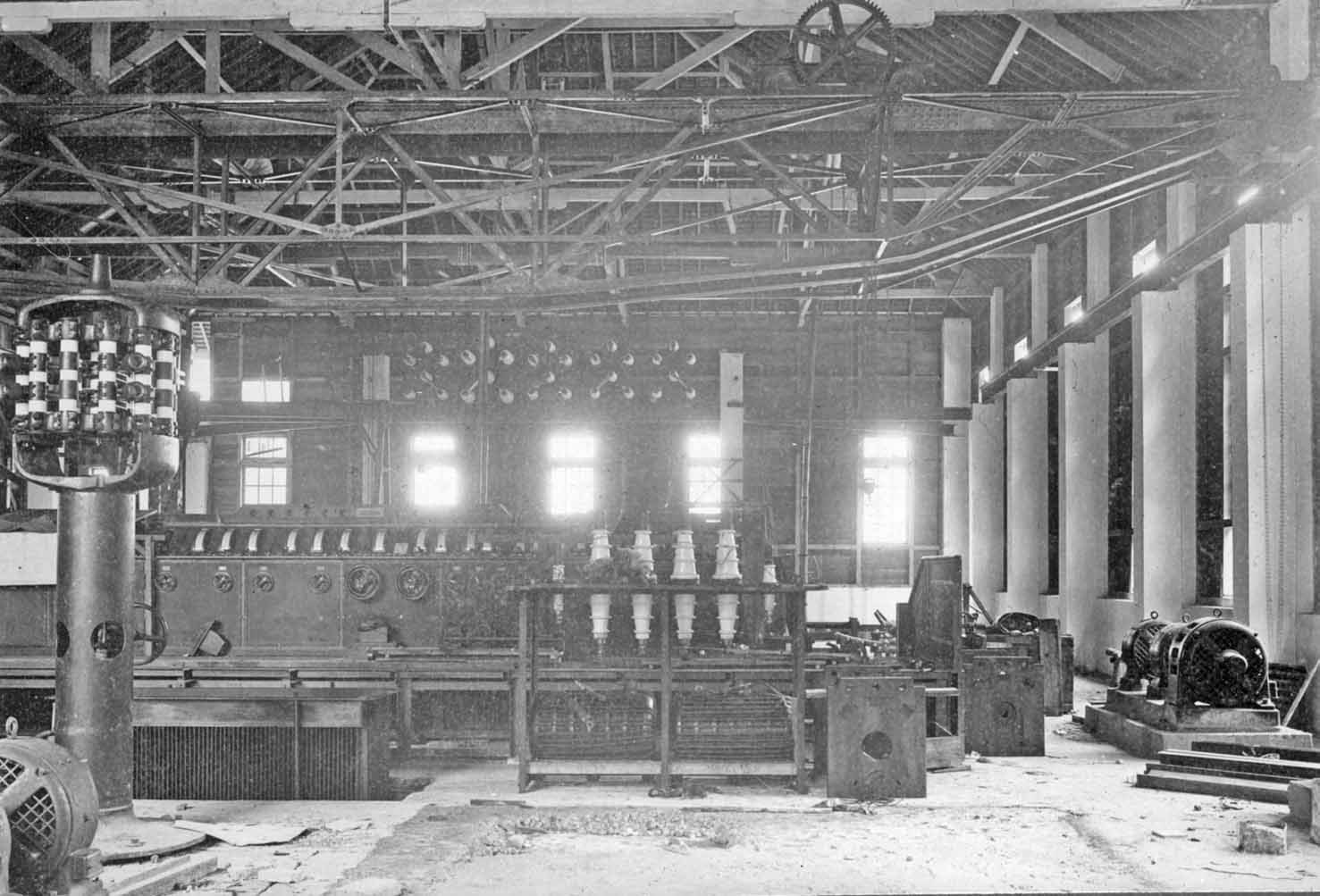

Schakellessenaar

Standing inside the Telefunken transmitter hall, viewing the transmitter control panel.



Page 69





7 Februari 1922

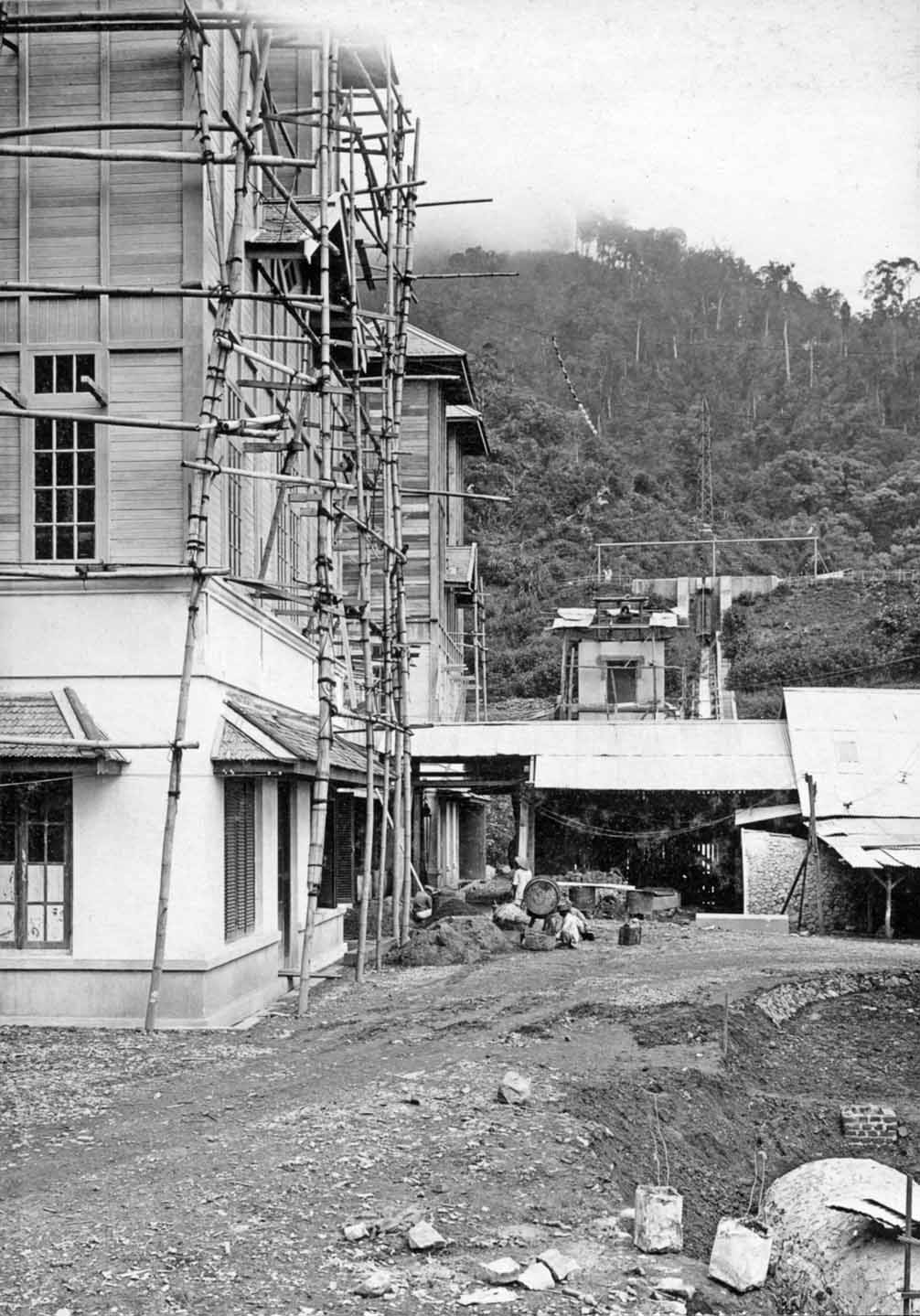

On the left-hand side the second antenna-tuner tower in front of the building, annex the Telefunken transmitter hall.

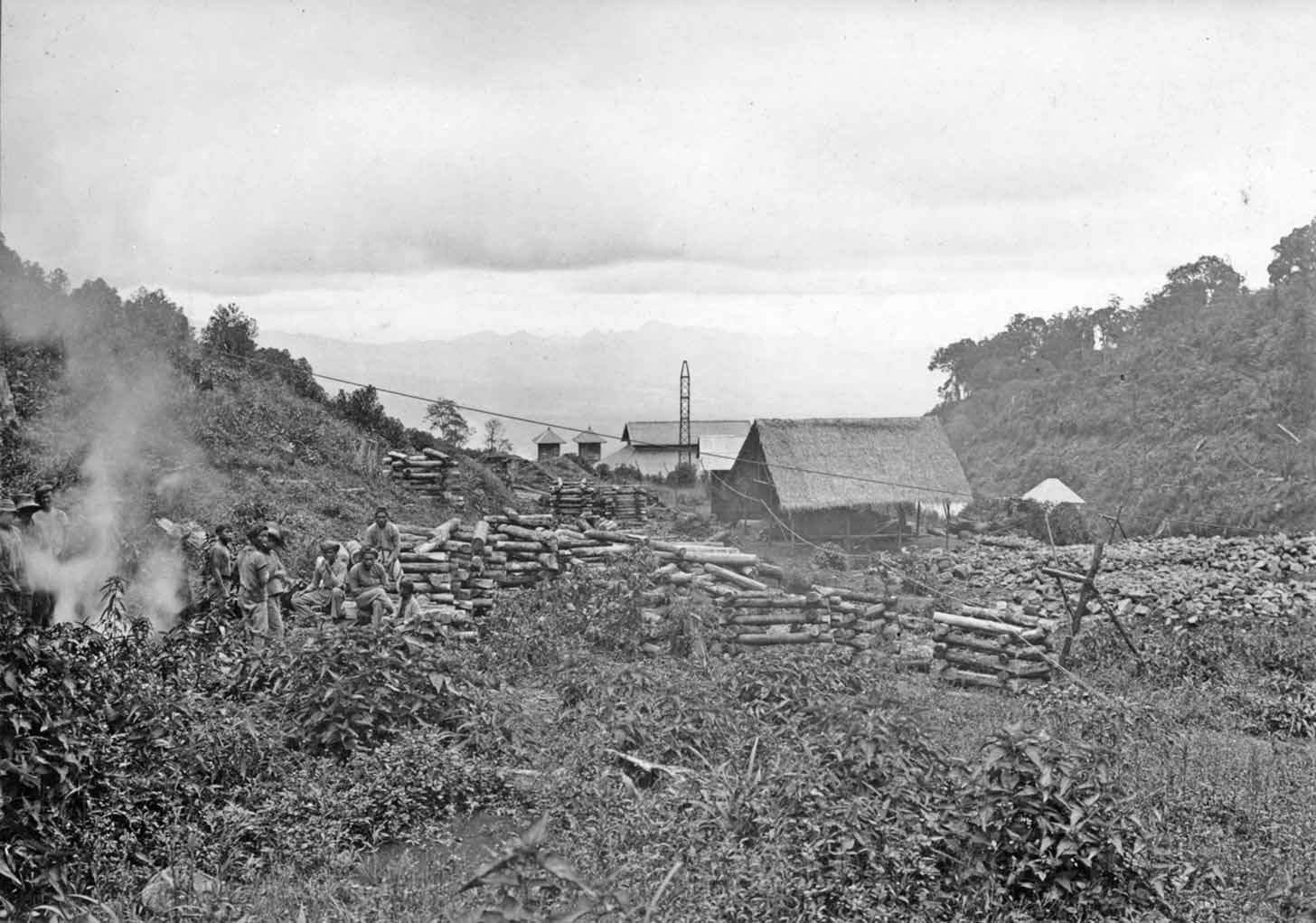

7 Februari 1922

Looking towards the Bandung Valley. The camera positioned more inside the canyon.





7 Februari 1922

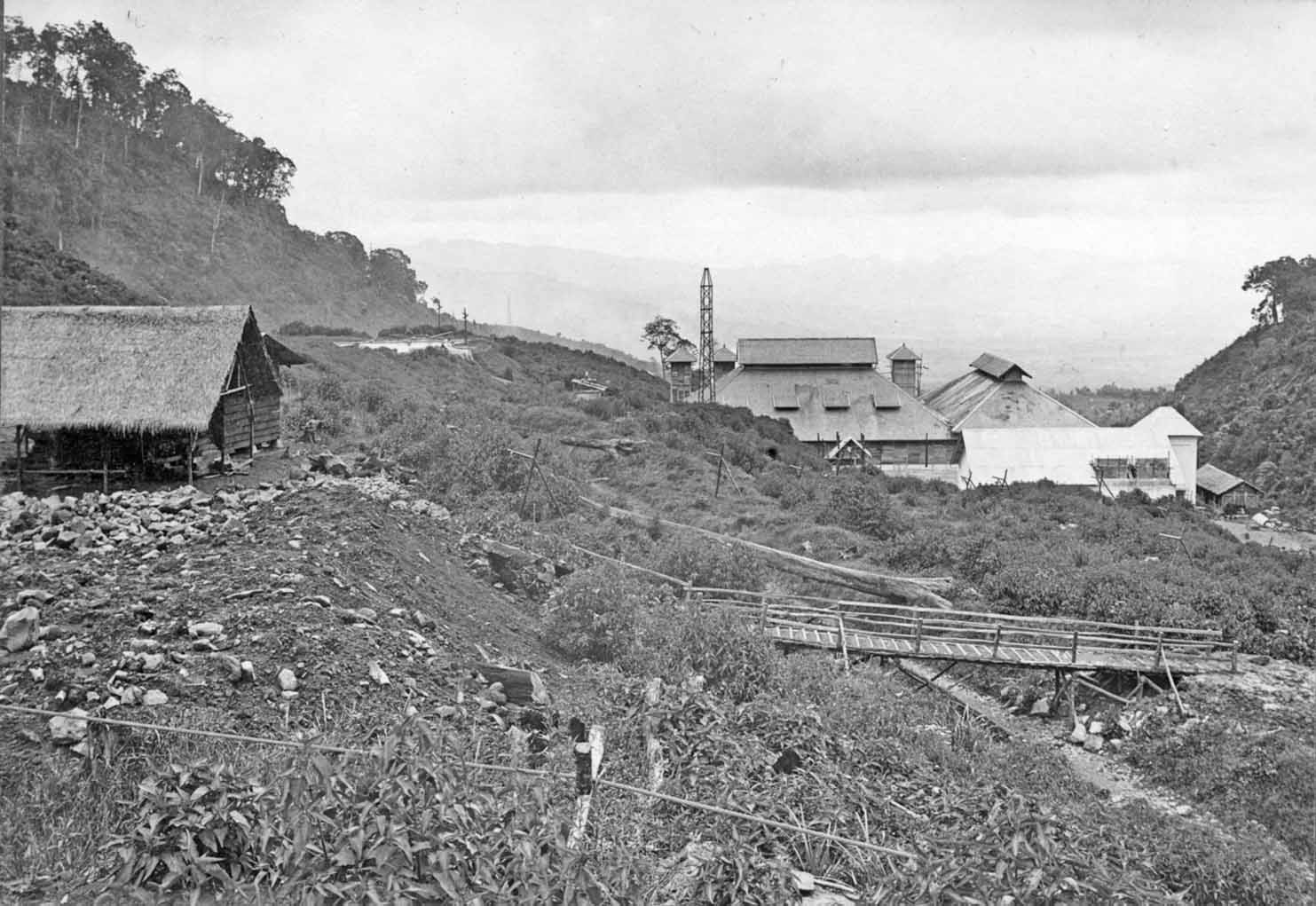

Overzicht terrein

The camera positioned a bit nearer to the Radio Malabar building, viewing roughly northwards.



Page 70





7 Februari 1922

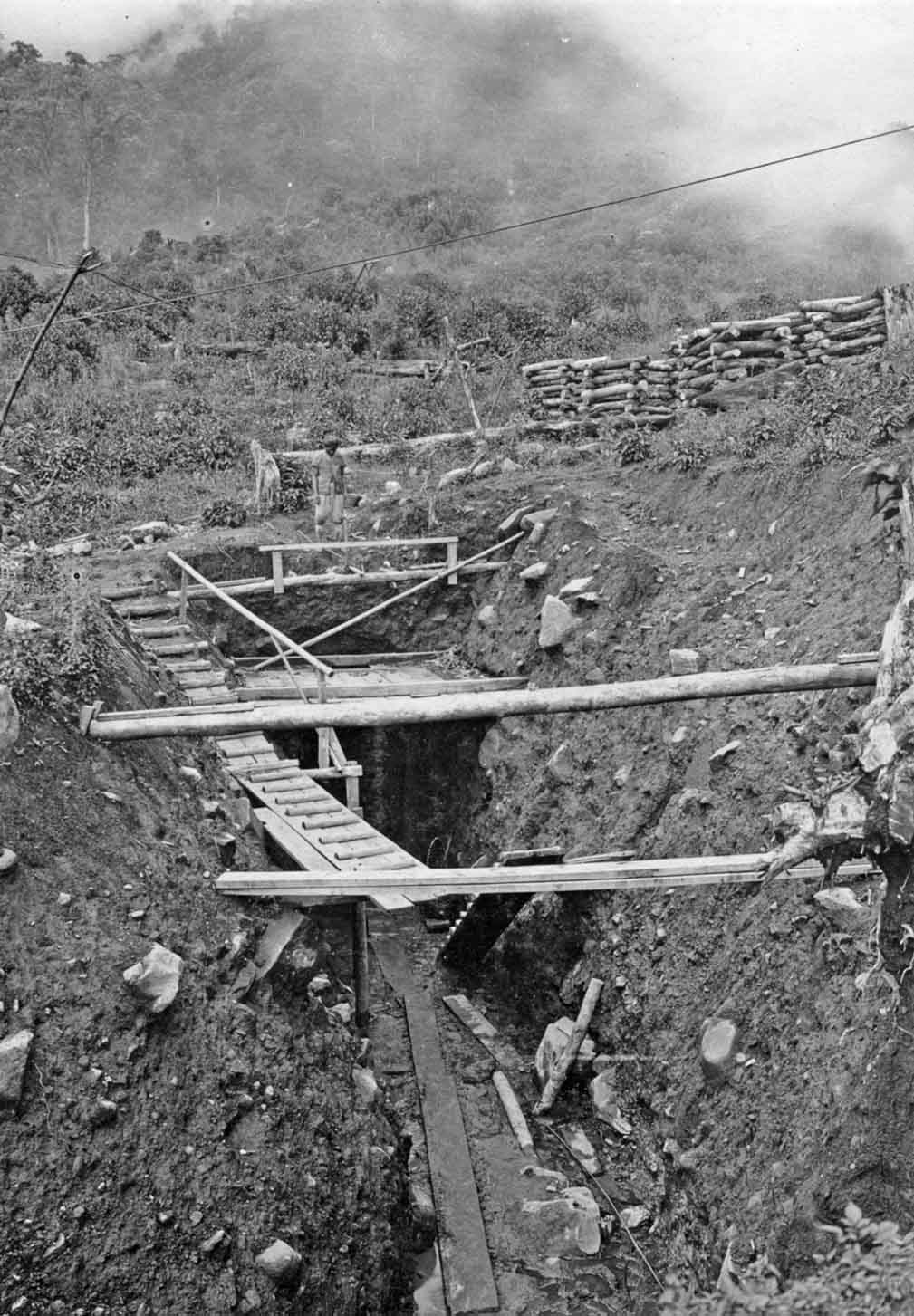

Constructing likely a water-guiding channel, taking into account the V-shape of the earth work commenced.





7 Februari 1922

Viewing, I guess, towards the front of the Malabar station building. Standing inside the Telefunken transmitter hall.





7 Februari 1922

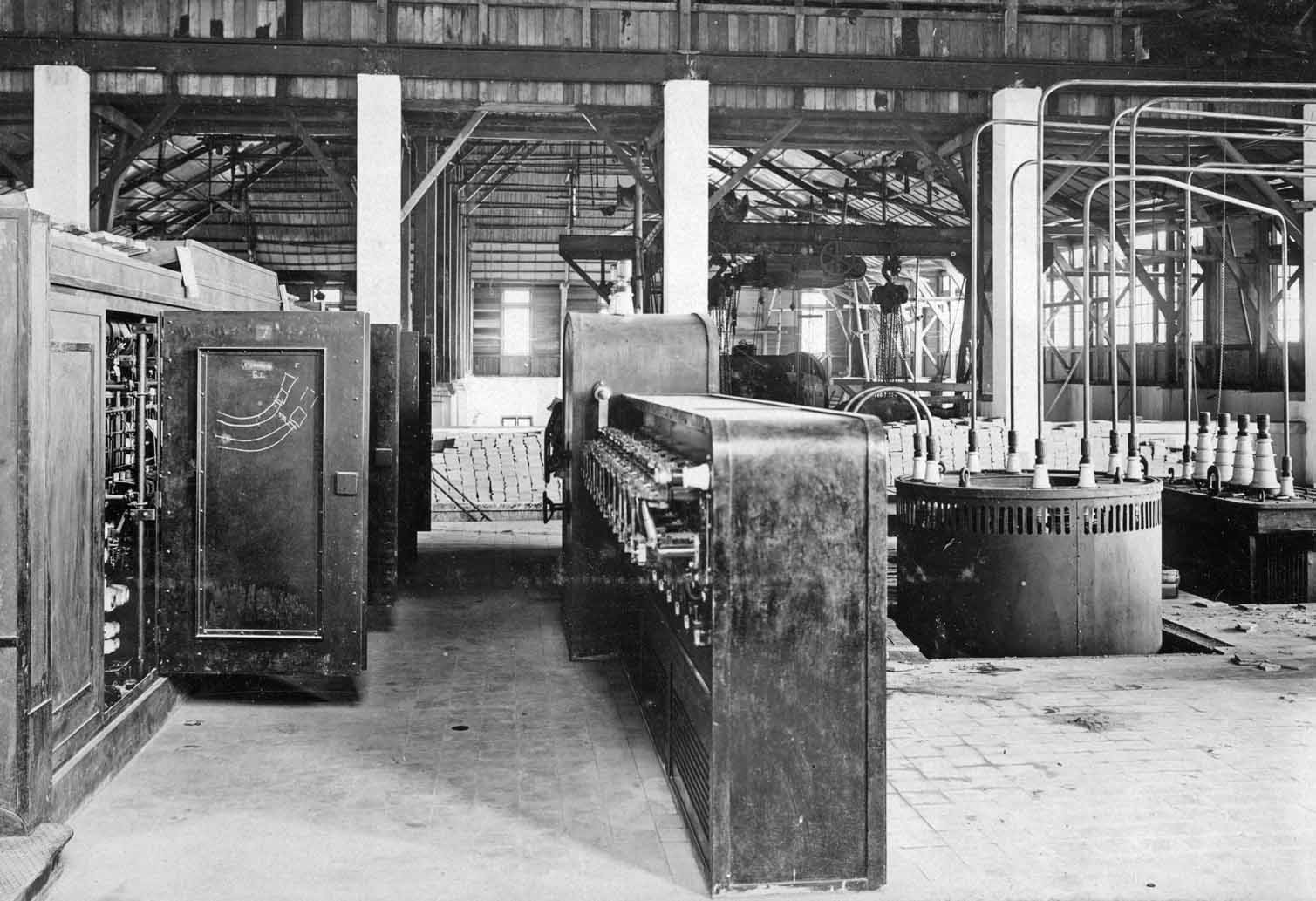

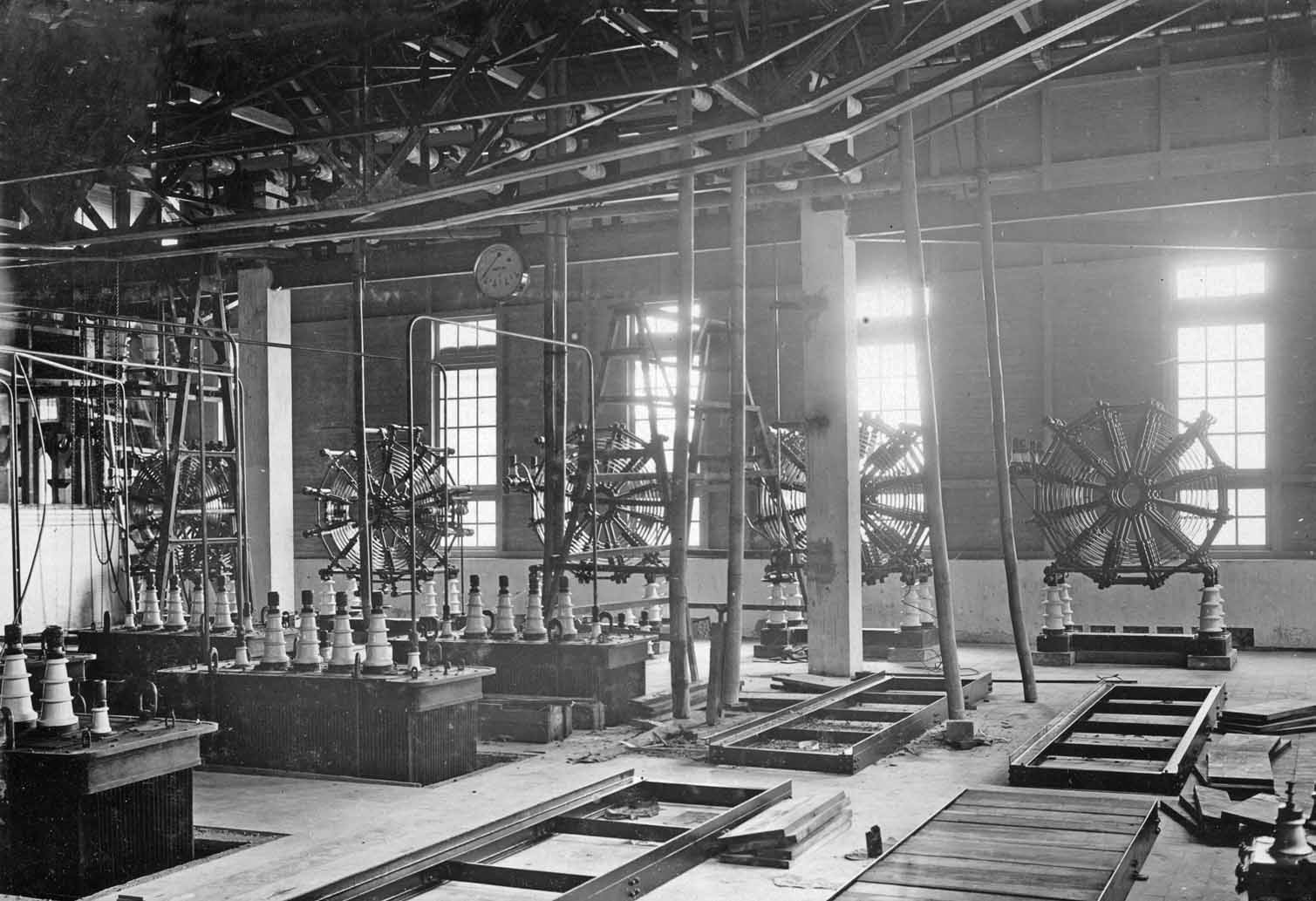

Schakelingen, spoelen

Maybe viewing the rear of the Telefunken transmitter control panel.



Page 71





7 Februari 1922

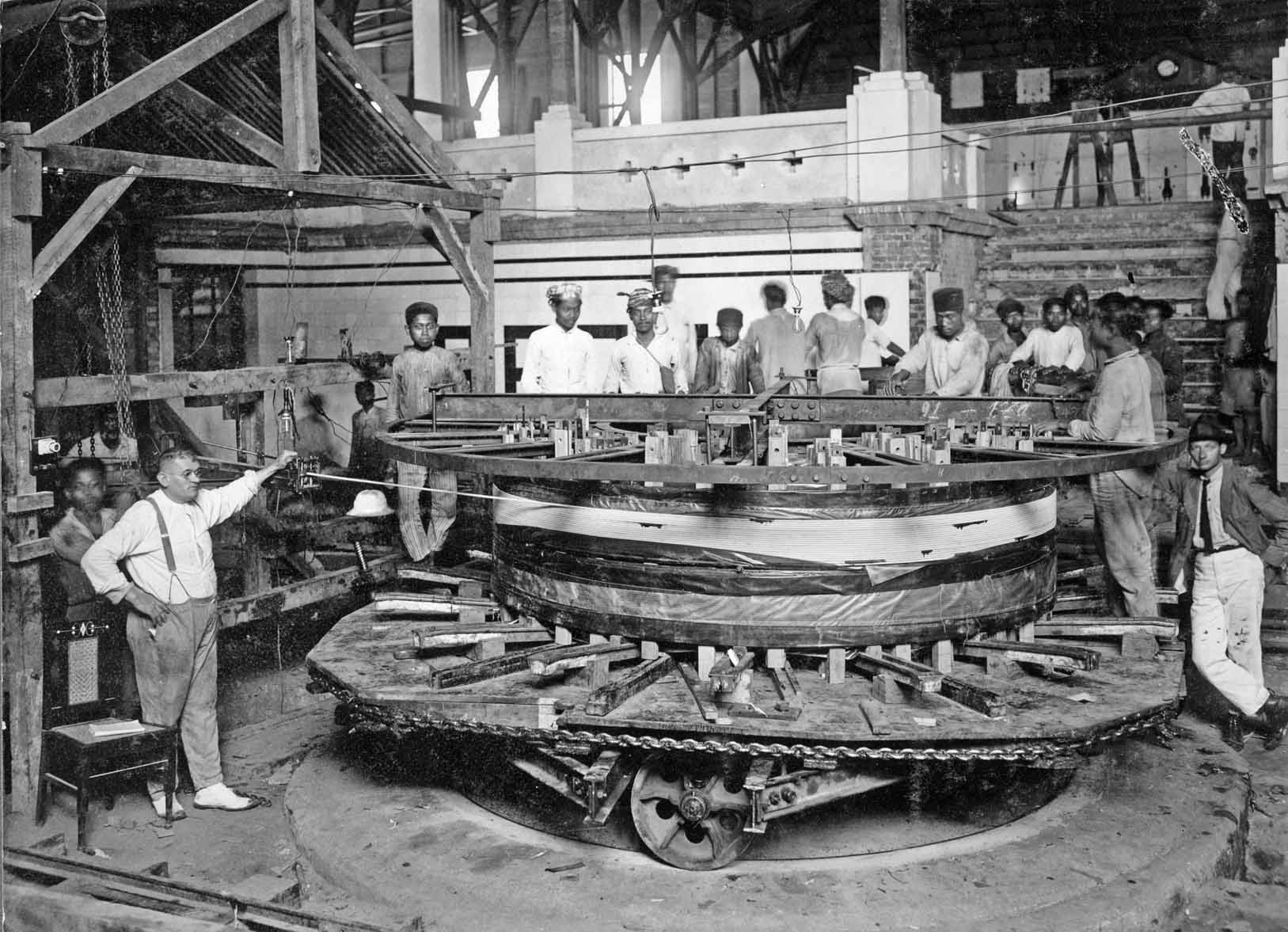

Wikkelen

Again Mr. 'Lazarus Potcognak' supervising winding one of the Poulsen Spark-Gap transmitter coils. Please notice the quite heavy chain utilised for coil winding.

Please notice the way the coils were implemented in the system



Page 72





7 Maart 1922

Apparently coil winding was demanding quite some personnel assisting. Coil winding was here commenced inside the main transmitter hall, whereas previously one get the impression that it was done somewhere else.





7 Maart 1922

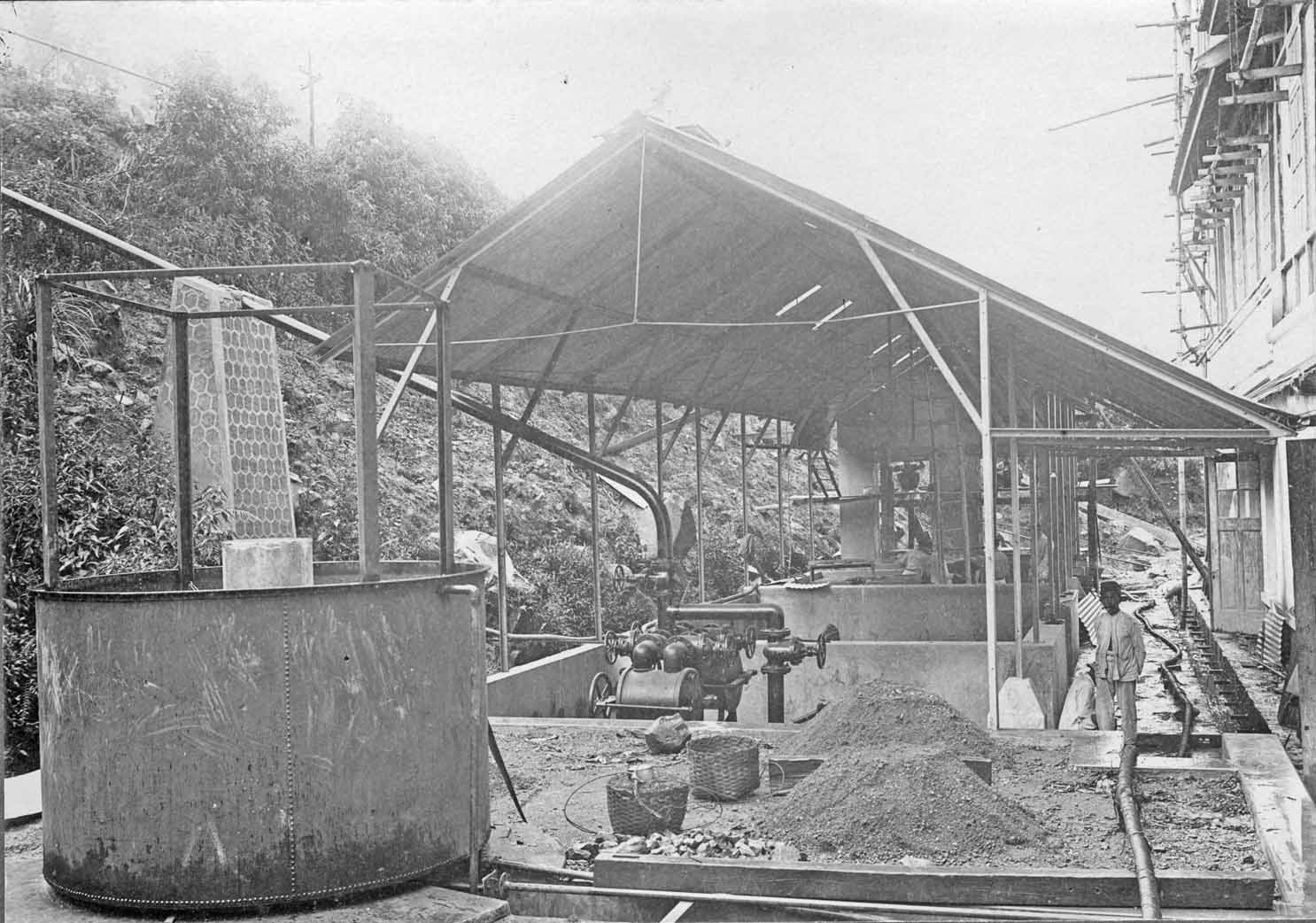

We are standing outside the Telefunken transmitter hall still under construction. My guess, shown in front is a cooling water system under construction. The cylinder on the left reminds me for a photo taken on the other side of the main station hall. Viewing the small tube running towards the main building, it might have been a water storage tank.





7 Maart 1922

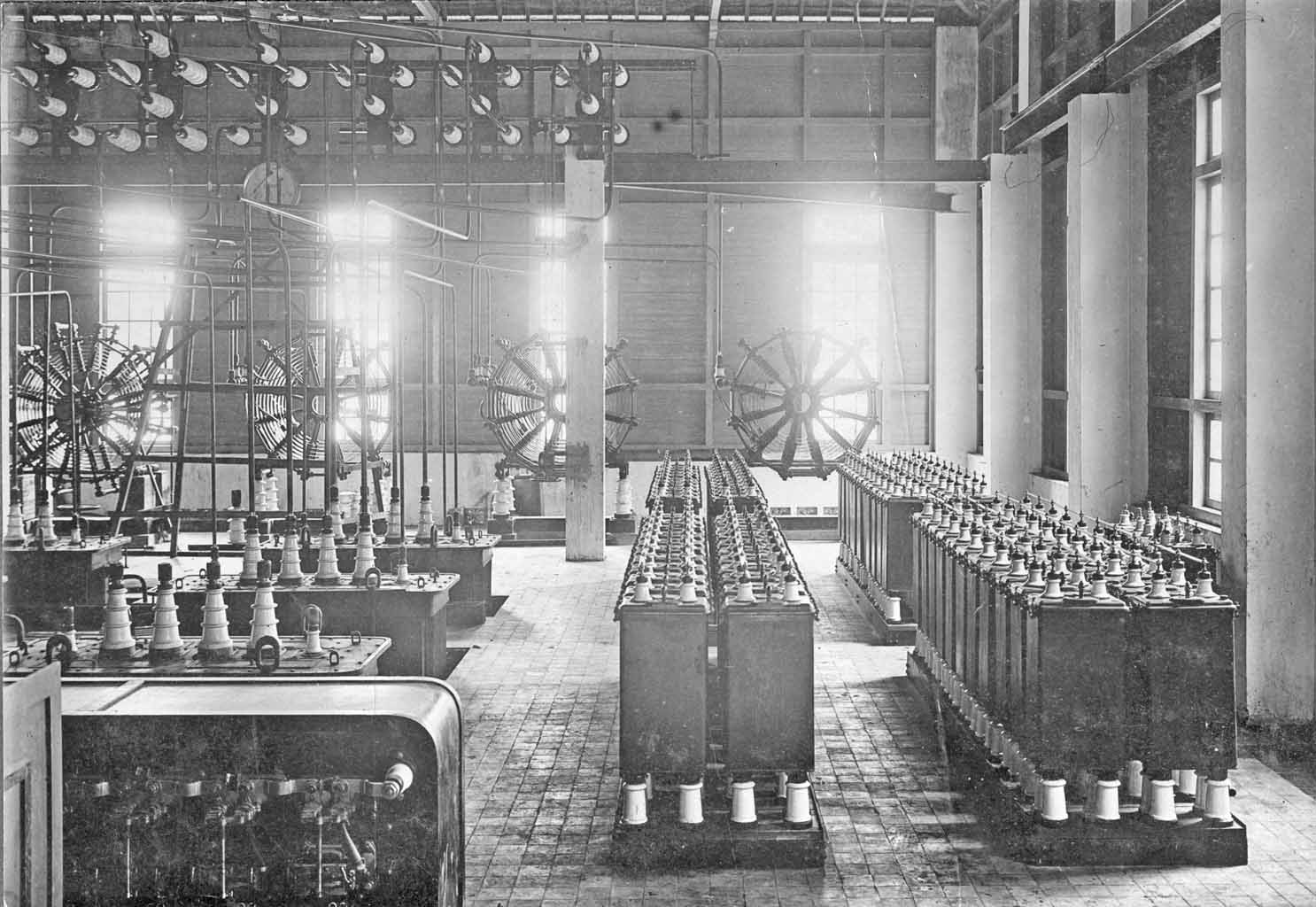

Viewing banks of capacitors. On the right-hand side is the canyon (east slope) side, in the rear the front windows facing the Bandung Valley direction.



Herewith this project has come to a conclusion.

What, however, is most likely, that additional albums once existed. Because in Klaas Dijkstra's book we can find additional (complementary) photos.

I would like to remind, that photos may be used for non commercial purposes only. We would very much appreciate that reproduction used for a non commercial paper or article is referring to our web source and we also would be delighted to receive a copy of the article or (non commercial) publication.

We also would like to remind you, that these albums were once owned by late Bob Grevenstuk; before they were granted to our Foundation.



To continue please return to: Bouw Radio Zendstation Malabar



Edited by: Arthur O. Bauer
